Types and applications of 60 degree carbon steel elbow

In pipeline design, the role of the pipe elbow is to change the flow direction of the pipeline. Common pipe elbow angles include 45-degree elbows, 90-degree elbows, 180-degree elbows, etc. In addition, there are other non-standard angles such as 60 degrees to meet specific engineering needs.

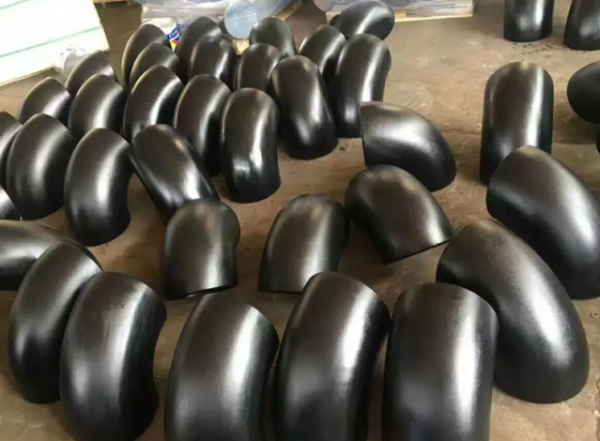

60-degree carbon steel elbow is an important component used in pipeline systems. It is made of carbon steel and is mainly used to change the flow direction of the pipeline to a 60-degree angle. The commonly used standard is ASTM A234. This elbow is widely used in industrial pipelines and construction projects, and can meet the needs of pipeline systems for medium-angle bends. This article will discuss the main features, types, specifications and functions of 60-degree carbon steel elbows in practical applications.

Features of 60-degree carbon steel elbows:

The main feature of the 60-degree pipe elbow is that it can change the flow direction of the pipeline while reducing the pressure loss in the system. It is usually suitable for pipeline systems that require medium-amplitude turns.

The design of the 60-degree pipe elbow allows the fluid to maintain its flow efficiency in the pipe while turning, reducing the additional resistance caused by the turn, thereby reducing energy consumption. In addition, the 60-degree elbow is suitable for a variety of pipeline layouts and installation scenarios due to its moderate turning angle, and has good versatility and practicality.

The design of the 60-degree pipe elbow takes into account the principles of fluid dynamics to ensure that the fluid can flow smoothly during the turn, reduce turbulence and resistance, and thus reduce energy loss. Therefore, the 60-degree elbow is widely used in industrial and chemical pipeline systems.

Types of 60-degree carbon steel elbows:

1. Welded elbows
This elbow connects two sections of pipes together through a welding process and is suitable for pipe systems that require a 60-degree bend. The advantages of welded elbows are simple structure and low manufacturing cost, but the welding part may become a potential leak point. Its manufacturing process involves welding after bending the pipe to a 60-degree angle, and the weld needs to undergo rigorous testing to ensure quality.

2. Pressed elbows
The 60-degree elbows manufactured by the cold pressing process are suitable for small and medium-sized pipes. The advantages of pressed elbows are better inner surface finish and uniform wall thickness, which are suitable for pipe systems with lower pressure. During the manufacturing process, the steel pipe is pressed into a 60-degree bend shape through a mold in a cold state, ensuring high precision and consistency.

3. Cast elbows
The 60-degree elbows produced using a casting process are suitable for large and high-pressure pipe systems. Cast elbows can achieve complex design and size requirements and are suitable for high temperature and high pressure environments. Its production process involves pouring molten steel into a mold and cooling and solidifying it to form the required 60-degree bend shape. Cast elbows usually have higher strength and wear resistance.

4. Seamless elbows
This type of elbow is manufactured through a seamless process and is suitable for applications that require higher strength and reliability. The advantage of seamless elbows is that they have no welds and can better withstand pressure and impact. They are widely used in industries such as petroleum and chemicals. During the manufacturing process, the steel pipe is heated to a high temperature and then formed into a 60-degree elbow by rolling or die processing.

Specifications and applications of elbows:

Specifications: The specifications of 60-degree carbon steel elbows include parameters such as outer diameter, inner diameter, and wall thickness. The specification selection should be determined according to the actual needs of the pipeline system. Common specifications include outer diameters ranging from 50 mm to 1000 mm, and wall thickness is selected according to different pressure levels.

Application: 60-degree elbows are widely used in various pipeline systems, such as water supply pipelines in construction projects, drainage systems in industry, and petroleum and chemical pipelines. It is suitable for pipeline layouts that require 60-degree bends, and can effectively change the direction of the fluid to meet the design requirements of the system.
