Difference in pressure bearing between welded elbow and seamless elbow

Difference in pressure bearing between welded elbow vs seamless elbow:

Pressure bearing capacity of welded elbow:
Welded elbow is made by cutting two straight pipes into a curved shape and then welding them together. The pressure bearing capacity of welded elbow is limited because there are gaps in the internal welds, and leakage may occur due to loose welding. Therefore, welded elbows are usually suitable for low-pressure occasions, such as tap water pipes.

Pressure bearing capacity of seamless elbow:

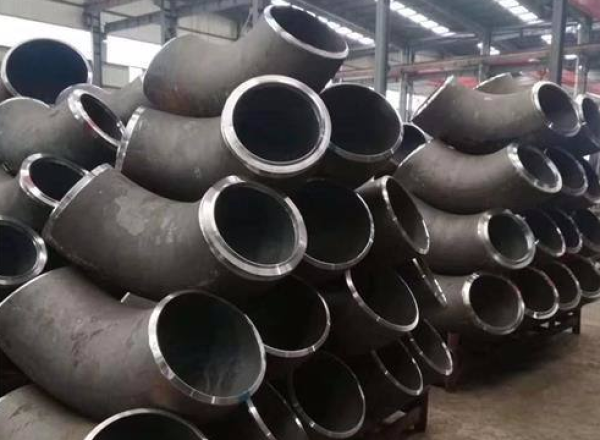

Seamless elbow is a whole section of pipe bent from one end into the shape of an elbow, and there is no welding gap inside, so its material density is higher, more durable, and its pressure bearing capacity is stronger than that of straight seam elbow, which is suitable for high-pressure occasions, such as oil and natural gas pipelines.

Choice of use environment:
When using it specifically, it is necessary to select the type of elbow according to the pressure the pipeline is subjected to and the requirements of the use environment. Generally speaking, the pressure of industrial pipelines is relatively high, and it is recommended to choose seamless elbows to avoid safety problems such as leakage; in low-pressure environments, welded elbows can be selected.

Notes:

When purchasing and using pipe elbows, you need to pay attention to the following points:

1. Choose the right material, such as carbon steel, stainless steel, etc., according to the medium and use environment of the pipeline.
2. The welding quality requirements are high, and no obvious defects and cracks should appear.
3. During installation, it is necessary to ensure that the bending radius of the elbow meets the national standard requirements to avoid excessive bending of the elbow causing deformation or rupture of the pipeline.

Application fields of pipe elbows:

1. Pipe engineering: In pipeline engineering construction, elbows are one of the essential accessories. They are used to bend pipes so that pipes can adapt to various complex construction environments, such as turns, intersections, etc. Elbows enable pipes to be bent according to design requirements, thereby ensuring construction quality and safety.
2. Building decoration: In building decoration, elbows are often used to bend pipes. For example, when installing water pipes, heating pipes, range hoods and other equipment, elbows can bend pipes into various shapes to meet different installation needs.
3. Industrial manufacturing: In industrial manufacturing, elbows are also widely used in various mechanical equipment. For example, in machine tools, printing presses, papermaking machines and other equipment, elbows are used to bend pipes made of various metals, plastics and other materials.
4. Other fields: In addition to the above fields, elbows are also widely used in other fields, such as power engineering, petrochemicals, food processing, etc. In these areas, elbows are often used for the installation, maintenance and replacement of various pipeline systems.

Conclusion:

In general, the pressure bearing capacity of seamless elbows is stronger than that of straight seam elbows, but the price is also higher. When choosing, it is necessary to consider the specific use environment and pressure requirements. Whether it is a welded elbow or a seamless elbow, it needs to be selected and installed in strict accordance with national standards when purchasing and using it to avoid safety problems.​
