Can A Carbon Steel Pipe Be Welded To An HDPE Pipe?

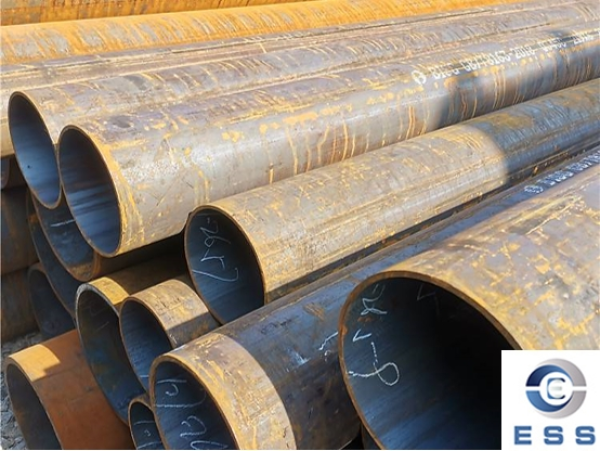

Carbon steel pipe and HDPE pipe are two common pipe materials with different physical and chemical properties. Carbon steel pipe is widely used in industry and construction due to its high strength and pressure resistance, while HDPE pipe is favored in water supply and drainage and chemical pipe systems due to its good corrosion resistance, flexibility and easy installation. So can they be directly connected? The answer is no, why?

Carbon steel pipe and HDPE pipe cannot be directly welded due to the huge difference in material properties:

1. Large difference in material properties

Carbon steel pipe is a metal material, and HDPE pipe is a plastic material. The atomic structure and molecular structure of the two are completely different. During the heating process, carbon steel pipe requires extremely high temperature to melt, and this temperature is far higher than the tolerance temperature of HDPE pipe, which will cause HDPE pipe to decompose and carbonize rapidly, and it is impossible to achieve effective welding.

2. Different thermal expansion coefficients

The thermal expansion coefficients of carbon steel pipe and HDPE pipe are significantly different. The thermal expansion coefficient of carbon steel pipe is relatively small, while the thermal expansion coefficient of HDPE pipe is large. After welding, when the temperature changes, due to the inconsistent thermal expansion of the two, a large internal stress will be generated at the welding site. This internal stress may cause cracking and detachment at the weld, seriously affecting the sealing and stability of the pipeline connection.

Carbon steel pipe and HDPE pipe cannot be directly welded, but they can be connected in the following ways:

1. Flange connection

This is one of the most commonly used methods. By installing flanges at the ends of the carbon steel pipe and HDPE pipe and fixing the two together with bolts, a reliable connection can be achieved. This method is simple and easy to implement, and can effectively avoid the problems caused by welding.

2. Steel-plastic composite pipe

The use of steel-plastic composite pipe is an alternative. This pipe is made of carbon steel pipe as the base material, and the inner and outer layers are coated with HDPE material. It has both the strength of carbon steel pipe and the corrosion resistance of HDPE.

3. Combination of hot melt connection and mechanical connection

In some special cases, the HDPE pipe can be first connected to an adapter by hot melt, and then the adapter can be connected to the carbon steel pipe by mechanical means (such as threads or clamps).

In practical applications, the following details must be noted:

1. When connecting carbon steel pipes and HDPE pipes, it is necessary to ensure the material compatibility of the connection parts to avoid failure of the connection due to chemical reactions or physical stress.

2. Whether it is flange connection or other connection methods, quality control during the construction process is crucial. For example, when connecting flanges, it is necessary to ensure the correct installation of the sealing gasket to avoid leakage.

Summary

Although carbon steel pipes and HDPE pipes cannot be directly welded, reliable connections can be achieved through flange connections, steel-plastic composite pipes or hot-melt connections combined with mechanical connections. However, in actual applications, it is necessary to select the appropriate connection method according to specific needs, and pay attention to the precautions of welding to avoid unnecessary losses.
