Common Oilfield Drill Pipe

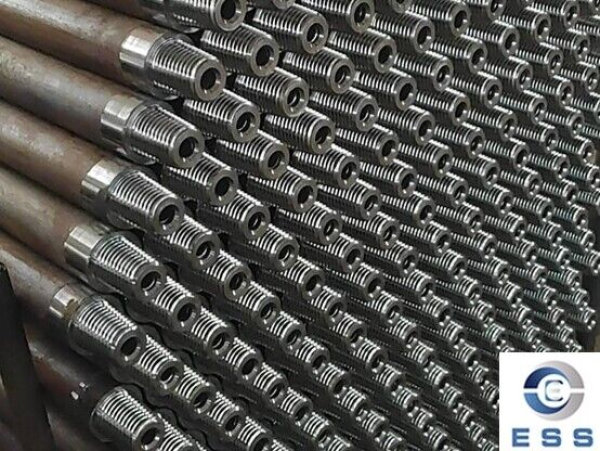

Oilfield drill pipe is one of the important drilling tools in the process of oil exploration and development. It is a necessary OCTG pipe. Its main function is to connect and transmit rotational force to complete the drilling operation of oil wells. There are many types of oilfield drill pipe specifications. This article will focus on the commonly used drill pipe specifications.

Common specifications

1. Diameter specifications

The diameter specifications of oilfield drill pipe are usually 3 inches, 3.5 inches, 4 inches, 4.5 inches, 5 inches, 5.5 inches, 6 inches, etc., among which the specifications with a diameter of 3 inches to 5 inches are the most commonly used. The choice of diameter specifications mainly depends on the wellbore diameter and drill bit specifications.

2. Length specifications

The length specifications of oilfield drill pipe are usually 30 feet, 31.5 feet, 40 feet, 45 feet, etc., among which the specifications with a length of 30 feet to 31.5 feet are the most commonly used. Drill pipes of different length specifications can be used in combination to adapt to different drilling depths.

3. Thread type

The thread type of oilfield drill pipe is mainly divided into two types: API thread and special thread. API thread types include NC, REG, etc., while special thread types include XT, GT, etc. API thread types have a wide range of applications, while special thread types are mainly used in high-pressure, high-temperature wells and wells under complex geological conditions.

Application scenarios

1. Drill pipes with a diameter of 3 inches are suitable for shallow wells and small-diameter wells, and their advantages are strong flexibility and good adaptability.

2. Drill pipes with a diameter of 4 inches and 4.5 inches are suitable for deeper wells, and their advantages are good load-bearing performance.

3. Drill pipes with a diameter of 5 inches and 5.5 inches are suitable for very deep wells, and their advantages are strong load-bearing performance and flexibility.

4. Drill pipes with a diameter of 6 inches are suitable for special scenarios, such as large-diameter water wells.

Summary

The selection of drill pipe specifications should be determined according to the specific well conditions, including wellbore diameter, drill bit specifications, well depth and other factors. The specifications introduced in this article are only common specifications in oil field drill pipes. There are many types of drill pipe specifications, and they will be adjusted according to geological conditions, drilling technology, etc.
