Water pressure test of stainless steel elbows

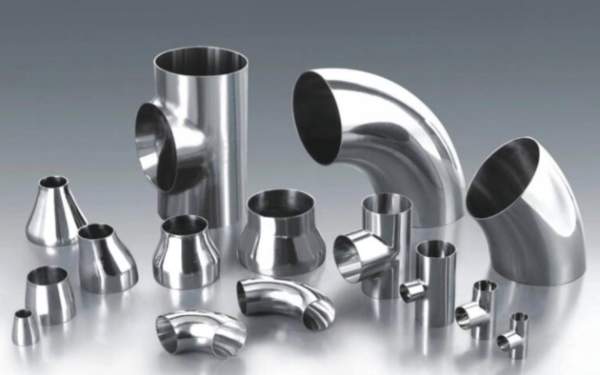

Stainless steel elbows (SS elbow) are used to change the flow direction of fluids in pipeline systems, so their sealing and pressure resistance are crucial. Water pressure testing is a key step to ensure that pipe elbows will not leak or rupture during actual operation. Through water pressure testing, the quality and performance of elbows can be effectively verified to ensure the safety of pipeline systems. This article will outline the basic methods, operating steps and precautions for water pressure testing of stainless steel elbows, and summarize the importance of testing.

Basic methods of water pressure testing:

Water pressure testing is to check the pressure resistance and sealing of stainless steel elbows by applying water with a certain pressure. Its basic method includes the following steps:

1. Preparation
Before conducting water pressure testing, relevant testing equipment and tools such as pressure pumps, pressure gauges, sealing gaskets, etc. need to be prepared. At the same time, ensure that the elbows and their connected pipeline systems have been installed and clean.

2. Filling with water
Fill the stainless steel elbows to be tested and the pipeline system connected to them with water. During the water filling process, the air in the system needs to be removed to avoid bubbles affecting the test results. Air removal can usually be completed through an exhaust valve installed at the highest point of the system.

3. Apply pressure
Use a pressure pump to gradually apply water pressure. The common test pressure is generally 1.5 times (i.e. 150%) of the working pressure to ensure that the elbow can operate normally under higher than actual working conditions. For example, if the working pressure of the pipeline system is 10MPa, the test pressure should be 15MPa. Monitor the applied pressure through the pressure gauge to ensure that the pressure is stable.

4. Observation and inspection
After applying the test pressure, observe whether the stainless steel elbow and its connection parts have leakage, deformation or other abnormal phenomena. If leakage or obvious deformation is found, the test should be stopped immediately and repaired or replaced.

5. Pressure maintenance
After the test is completed, the applied pressure should be maintained for a certain period of time (usually 15 minutes to 30 minutes) to observe whether the system can stably maintain the pressure. This step helps to ensure that the elbow will not have problems in long-term use.

Operation steps for water pressure detection of stainless steel elbows:

When performing water pressure detection, the following operation steps should be followed:

a. Ensure that the equipment is fully prepared: Check the status of the detection equipment to ensure that the pressure pump, pressure gauge and connecting pipes are not damaged and can operate normally.
b. Proper water filling: Ensure that the elbow and pipe system are filled with water, and remove the air in the system to ensure the accuracy of the test.
c. Gradually increase the pressure: When applying pressure, the pressure should be increased gradually to avoid accidental damage caused by sudden pressure increase. The pressure should gradually reach and remain at the test standard value.
d. Careful inspection: During the test, all connection parts and elbow surfaces should be carefully inspected, and problems should be recorded and handled in time.
e. Record data: Record the test pressure, test time and any abnormalities observed for subsequent analysis and processing.

Precautions for water pressure testing:

Safe operation: When conducting water pressure testing, operators should wear necessary personal protective equipment, such as safety glasses, gloves, etc., to avoid injuries caused by high-pressure water flow.

Environmental control: Ensure that the test environment temperature is suitable to avoid the impact of temperature changes on water pressure and test results. Too low temperature may cause water to freeze, affecting the detection accuracy.

Equipment maintenance: Regularly maintain and calibrate the testing equipment to ensure its accuracy and reliability.

Conclusion:

Water pressure testing of stainless steel elbows is a key step to ensure its safety and reliability in practical applications. Mastering the technical points and precautions of water pressure testing will help ensure the quality of carbon steel elbows and ensure the stable and reliable operation of the pipeline system.
