Difference Between The Coupling And Pup Joint of OCTG Casing Pipe

1. Size

The OCTG casing pipe coupling is a kind of fitting used to connect the two sections of casing pipe, usually composed of two elbows, a central pipe body and bolts. The coupling size is large, about 5 meters long, and the diameter ranges from 200mm to 2000mm. Different sizes should usually be selected according to the depth of the oil well.

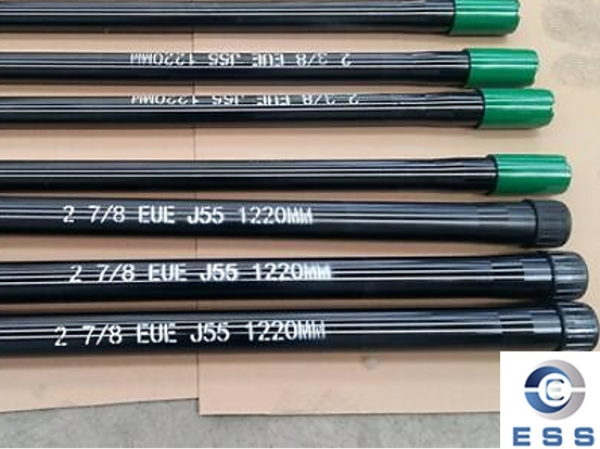

The casing pipe pup joint is relatively small, usually about 1.5 to 2 meters long, and the diameter ranges from 100mm to 500mm. The pup joint size is smaller than the coupling, so it is more convenient to use in some occasions where the space is relatively narrow.

2. Structure

The structure of the OCTG casing pipe coupling is relatively complex, and it is necessary to accurately match and combine pipes of different sizes and diameters so that they can be connected together and achieve the ideal sealing effect.

The structure of the casing pipe pup joint is relatively simple, consisting of two sections of pipe simply connected together and fixed with bolts. The pup joint usually uses a sealing ring to ensure the sealing of the interface, so it may not be as good as the coupling in terms of sealing. However, in terms of maintenance and replacement, the pup joint is more convenient.

3. Application

OCTG casing pipe couplings are usually suitable for occasions where it is often necessary to replace pipes, repair pipes or change the depth of the well during oil well production. They have reliable connections and good sealing performance, which can ensure that the liquid or gas in the pipeline does not leak.

Casing pipe pup joints are usually suitable for occasions with shorter pipes, such as connections in oil well queues and connections of ground equipment. In addition, the maintenance of the pup joint is more convenient, and one of the pipes can be quickly replaced or replaced without the need for overall replacement.

Summary

In summary, OCTG casing pipe couplings and pup joints are both commonly used connection methods. Their functions are similar, but there are also differences. According to different application scenarios and needs, choosing a suitable connection method will effectively improve the efficiency and stability of the pipeline system.
