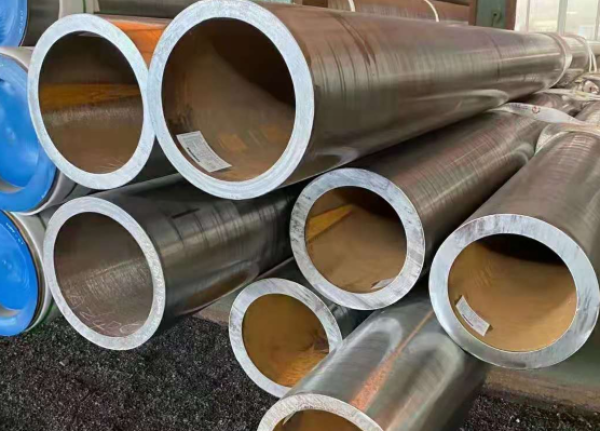

Characteristics and Application of 20CrMnSi Alloy Structural Steel Seamless Pipe

As an important alloy structural steel material, 20CrMnSi seamless steel pipe has a wide range of application value in the industrial field. It has various specifications and a wide range of uses. The following will introduce its specifications and main application areas in detail.

Specifications of 20CrMnSi seamless steel pipe:

The specifications of 20CrMnSi seamless steel pipe mainly cover the following aspects:

1. Outer diameter range
The outer diameter of the steel pipe is usually between 6mm and 630mm, of which small diameter (6-89mm) is mostly used for precision mechanical parts, and medium and large diameter (114-630mm) is suitable for heavy machinery and engineering structures.

2. Wall thickness parameters
The wall thickness ranges from 1mm to 50mm and can be selected according to the pressure requirements. For example, 1-5mm thin-walled tubes are mostly used for lightweight structures, while thick-walled tubes above 10mm are used for high-pressure pipelines or load-bearing parts.

3. Length standard
The common fixed length is 6-12 meters, and non-standard length can also be customized according to customer needs. Some steel pipes for special purposes will be delivered in multiple lengths (such as double length 18 meters).

4. Accuracy level
It is divided into ordinary grade (±1% outer diameter tolerance) and high precision grade (±0.5% outer diameter tolerance). The latter is mainly used in hydraulic systems and other fields with strict dimensional requirements.

5. Implementation standard
Mainly refer to national standards such as GB/T 8162-2018 (seamless pipe for structure) and GB/T 17396-2009 (pipe for hydraulic support), and some export products meet international standards such as ASTM A519.

Core performance characteristics:

1. Mechanical properties
After quenching and tempering treatment, the tensile strength can reach ≥835MPa, the yield strength ≥635MPa, the elongation ≥12%, and the impact energy ≥55J (-20℃ low temperature impact).

2. Advantages of chemical composition
The carbon content is 0.17-0.23%. The synergistic effect of chromium (0.8-1.1%) and manganese (0.8-1.1%) significantly improves hardenability, while silicon (0.9-1.2%) enhances fatigue resistance.

3. Process characteristics
When hot rolling (+ cold drawing) is used, the surface roughness can reach Ra3.2μm; cold-rolled precision tubes can reach Ra0.8μm, meeting different surface requirements.

Main application areas:

1. Engineering machinery
In excavators, cranes and other equipment, Φ50-325mm steel pipes are used to manufacture key load-bearing components such as hydraulic cylinders and supporting wheel shafts. The boom cylinder of a well-known brand excavator uses Φ168×14mm 20CrMnSi steel pipes, which increase its service life by 30%.

2. Automobile manufacturing
Applied to drive shafts (usually Φ60-90mm), half-axle sleeves and other components. New energy vehicle battery pack structural parts begin to use Φ30-50mm thin-walled tubes (wall thickness 2-3mm) to achieve a combination of lightweight and high strength.

3. Energy equipment
Oil drills use Φ73-114mm thickened tubes (wall thickness 6-12mm) to make drill collars; wind power fields use tower connection flanges (Φ400-600mm large-diameter tubes), and a single 2MW wind turbine uses up to 8 tons.

4. Military and aerospace
As rocket engine fuel delivery pipes (Φ20-60mm precision tubes), they need to pass -196℃ ultra-low temperature impact tests; armored vehicles use Φ80-150mm thick-walled tubes to make bulletproof structural layers.

5. Special equipment
High-pressure gas cylinders usually use Φ140-219mm specifications with a working pressure of 15-30MPa; hydraulic support column pipes require Φ180-400mm and a wall thickness of 20-50mm, which can withstand pressures above 8000kN.

Market development trend:

1. Precision direction
The tubes for drive motor shafts of new energy vehicles are gradually developing towards the high precision direction of Φ25±0.05mm, and the roundness requirement is ≤0.03mm.

2. Composite application
The latest developed 20CrMnSi/Al composite tube (outer layer 3mm steel + inner layer 2mm aluminum) has been successfully applied to aircraft hydraulic systems, with a weight reduction effect of 40%.

3. Green manufacturing
The steel pipes using the controlled rolling and controlled cooling (TMCP) process have reduced production energy consumption by 15%. A leading enterprise with an annual production capacity of 100,000 tons can reduce CO₂ emissions by 12,000 tons/year.
