Uses and Classifications of Drill Pipe

Drill pipe is primarily used in drilling operations during geological exploration and oil production.

Overview of Drill Pipe:

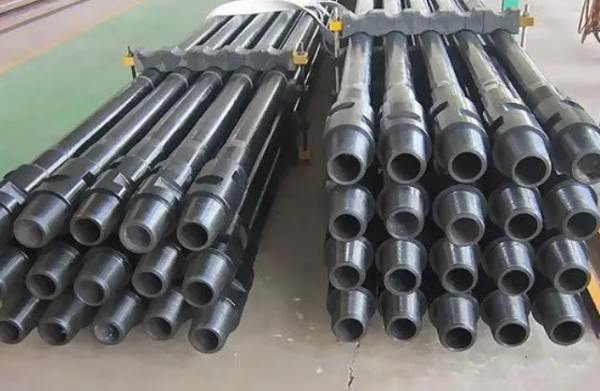

Drill pipe is a type of drilling equipment consisting of multiple sections of steel pipe connected together by threads. Typically made of steel, it comes in a wide variety of sizes, allowing users to select different specifications for assembly. Drill pipe must be able to withstand significant internal and external pressure, as well as twisting, bending, and vibration. During the oil and gas extraction and refining process, drill pipe can be used multiple times.

Composition and Working Principle of Drill Pipe:
Drill pipe is primarily composed of steel pipes, each of a specific length and thickness. These pipes are assembled together using a specific threaded connection to form a long rod. The drilling rig rotates the drill pipe to lower the drill bit into the formation for drilling.

During drilling operations, a certain weight is required below the drill bit to ensure smooth cutting and drilling. To achieve this, a weight is placed at the lower end of the drill pipe, typically a pipe below the drill bit or a cast iron drill collar. In this way, with the drill bit positioned below the drill pipe, the drill bit can engage and cut into geological formations such as rock and soil by rotating the drill pipe, forming a borehole.

Drill pipe classification:
Drill pipe is divided into three categories: kelly, drill pipe, and weighted drill pipe. The connection order is: kelly pipe(1 piece) + drill pipe (n pieces, determined by the well depth) + heavy weight drill pipe (n pieces, determined by the drill string assembly design).

The drill string typically consists of: drill bit, drill collar, drill pipe, stabilizer, special connector, and kelly pipe.

Drill pipe joint classification:
Drill pipe joints are components of drill pipe and are available in male and female versions. They connect at both ends of the drill pipe body. To enhance the joint's strength, the pipe wall thickness is increased at the joint. Thickening methods are categorized as internal, external, or internal/external. The joint has a threaded (coarse thread) design for connecting individual drill pipes. The thread of the drill pipe joint is a tapered pipe thread with a sealing shoulder. The shoulder is tightened to provide a seal, while the thread serves only as a connection. Different thread types correspond to different types of joints.

Applications of Drill Pipe:
Drilling is a crucial task in oil production. Drill pipe, as an essential piece of equipment, plays a vital role in this process.

Drill pipe enables safe and rapid drilling in underground environments, removing rock and soil to create various well types, such as drainage wells, water wells, and oil wells. Drill pipe is also used in geological exploration, providing data for geological research by analyzing geological conditions and resource reserves. Drill pipe is also widely used in construction and water conservancy projects.

Geological drill pipe is primarily used for drilling, excavation, and anchoring in industries such as coal mines, mining, construction and water conservancy projects, railways and highways, tunnels, and bridges. In coal mines, drill pipes are primarily used for water and gas detection, coal direction detection, coal thickness, and coal seam water injection.

In summary, drill pipes are a very important piece of drilling equipment, playing a vital role in geological exploration and oil production. Whether in resource exploration or engineering construction, drill pipes have a wide range of applications and are of great significance.
