Carbon Steel Square Pipe: Characteristics, Applications and Selection Guide

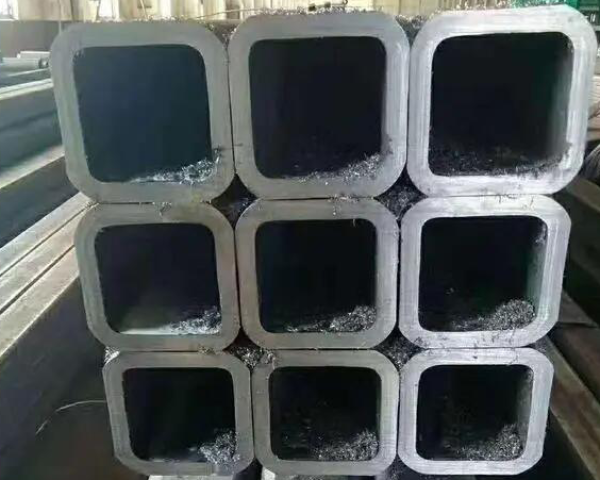

Carbon steel square tube is a common metal material, named for its square or rectangular cross-section. Its excellent mechanical properties, aesthetic appeal, ease of processing, and affordability have made it an indispensable foundational material in modern industry, construction, and everyday life. This article will systematically introduce carbon steel square tubes, covering material properties, production processes, application scenarios, and key purchasing considerations.

Basic Characteristics of Carbon Steel Square Tubes:

Carbon steel square tubes are primarily composed of iron and carbon, with the carbon content typically ranging from 0.12% to 2.0%. Its core properties include:

-Strength and Toughness: The addition of carbon significantly increases the steel's hardness and tensile strength, while adjusting the carbon content can balance the material's toughness and brittleness.
-Corrosion Resistance: Ordinary carbon steel is susceptible to oxidation, but surface treatments such as galvanizing and painting can enhance its rust resistance.
-Processability: It supports cutting, welding, bending, and other processes, meeting diverse needs.
-Economical Availability: Compared to stainless steel or alloy steel, carbon steel is less expensive, making it suitable for large-scale use. -Aesthetics: The surface can be processed into a variety of effects (such as galvanizing), with a strong sense of modernity and easy to clean and maintain.

Production process and classification:

The manufacturing process of carbon steel square tubes is mainly divided into two categories:

(1) Welding process

-It is made by rolling the carbon steel strip into shape and then welding it. There may be welds on the surface, but the production efficiency is high and the cost is low.

-It is suitable for scenes where the welds are not strictly required, such as shelves, guardrails, etc.

(2) Seamless process

-It uses hot rolling or cold drawing technology to make the steel billet directly formed through the mold, without welds, and with higher overall strength.

-It is mostly used in load-bearing structures or high-pressure environments, such as mechanical shafts and conveying pipes.

According to the surface treatment method, it can also be divided into:

-Black pipe: untreated original steel pipe, which requires later rust prevention treatment.

-Galvanized pipe: The surface galvanized layer can extend the service life and is suitable for outdoor environments.

Application areas of carbon steel square tubes:

Carbon steel square tubes, with their structural advantages, perform well in the following scenarios:

-Building structures: used to build factory frames, stair handrails, canopy brackets, etc., taking into account both load-bearing and aesthetics.

-Machinery manufacturing: used as equipment bases, conveyor tracks, etc., to provide stable support.

-Home decoration: used to make bookshelves, storage racks or creative furniture, and can achieve personalized appearance through spraying.

-Traffic facilities: commonly found in public facilities such as street lamp poles and traffic sign brackets.

Purchase and use suggestions:

When choosing carbon steel square tubes, the following factors need to be considered comprehensively:

(1) Specifications

-Square pipe size: Side length (such as 20×20mm to 150×150mm) and wall thickness (1.0mm to 10mm) must match the load-bearing requirements.

-Length: The standard length is 6 meters, and custom cutting is also possible.

Use a caliper to measure whether the wall thickness and side length meet the agreed specifications to prevent "negative tolerance" from being passed off as good quality.

(2) Material and performance
Clear material: Different materials have different prices and performance differences.
-Q235: Ordinary carbon steel, high cost performance, suitable for general use.
-Q345: Higher strength, suitable for heavy-duty structures.

(3) Surface treatment
-Black tube or spray paint treatment can be selected for indoor dry environment; galvanized tube is recommended for humid or outdoor environment.

(4) Processing precautions
-The temperature should be controlled during welding to avoid material deformation;
-The cut should be treated with anti-rust treatment after cutting to extend the service life.

Maintenance and care:

To extend the service life of carbon steel square steel pipe, daily maintenance should pay attention to:
-Regularly check whether the surface coating is damaged, and repaint or zinc in time;
-Avoid long-term contact with acidic and alkaline substances to prevent chemical corrosion;
-Use soft cloth to wipe when cleaning, and prohibit scratching with hard objects.

Conclusion:
Carbon steel square pipe has become an important material in industry and life due to its versatility and economy. Understanding its characteristics, reasonable selection and proper maintenance can give full play to its value. Whether it's a large-scale construction project or a small home renovation, carbon steel square tubes offer a reliable solution.
