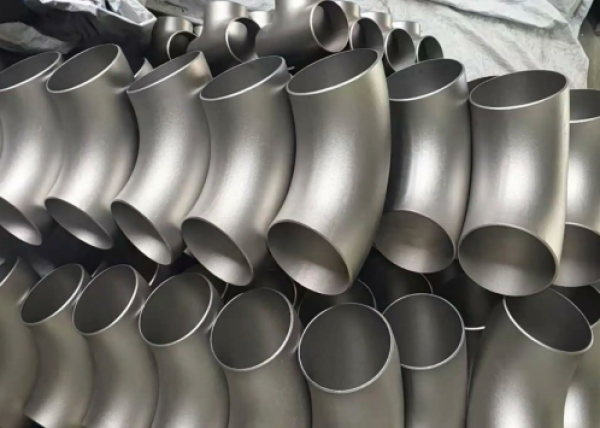

Selection, Installation, and Solutions for 45° Pipe Elbows

Pipe elbows are common connecting components in piping systems, used to change the direction of fluid transport. 45° elbows, due to their moderate angle, balance fluid resistance and space requirements, and are widely used in various industrial and civil applications. This article will analyze the selection, installation, and common problems of 45° elbows, providing practical solutions.

Key Points for Selecting 45° Pipe Elbows:

1. Material Selection: Choose the appropriate material based on the characteristics of the transported medium. Carbon steel elbows are suitable for general water, steam, and other neutral media; stainless steel elbows have strong corrosion resistance and are suitable for the chemical or food industries; plastic elbows are mostly used in low-pressure, normal-temperature drainage systems. The influence of medium temperature, pressure, and chemical properties on the material must be considered.

2. Specification Matching: The nominal diameter (DN) of the elbow should be consistent with the pipeline to avoid leakage or flow loss due to dimensional deviations. Attention should also be paid to the wall thickness parameter; thicker elbows should be selected for high-pressure environments to ensure safety.

3. Connection Methods
Common connection methods include welding, threaded connections, and flange connections. Welded elbows offer good sealing but are difficult to disassemble; threaded connections are suitable for small-diameter, low-pressure pipelines; flange connections facilitate maintenance but are more expensive. The choice should be made based on actual needs.

45-degree Pipe Elbow Installation Precautions:

1. Space Layout Planning
The angle design of a 45-degree elbow can reduce the space occupied when the pipeline turns, but the installation location needs to be calculated in advance. It is recommended to use 3D modeling software to simulate the pipeline route to avoid interference with other equipment.

2. Welding Process Control
If welding is used, ensure the weld joint is smooth and free of impurities. For carbon steel elbows, the surface oxide layer should be removed before welding; for stainless steel elbows, inert gas shielded welding should be used to prevent intergranular corrosion. A pressure test should be performed after welding to confirm there are no leaks.

3. Support and Fixing
Elbows are susceptible to impact forces due to changes in fluid direction, so supports should be added nearby. The support spacing should not exceed 10 times the pipe diameter; in areas with significant vibration, vibration damping pads can be added.

Common Problems and Solutions:

1. Leakage Issues
Leaks are often caused by improper installation or material aging. During inspection, first check the sealing surfaces for damage. Apply sealing tape to threaded connections; tighten flange bolts evenly. If cracks appear in the elbow body, replace it immediately.

2. Excessive Fluid Resistance
While 45° elbows have less resistance than 90° elbows, pressure drop can still occur if the flow velocity is too high. This can be improved by increasing the elbow's radius of curvature or reducing the flow velocity. For long-term operating systems, regularly cleaning deposits from the pipe walls can also reduce resistance.

3. Vibration and Noise
Fluid impact on the inner wall of the elbow can cause vibration. Solutions include: installing a buffer section downstream of the elbow, using rubber flexible connections to absorb vibration, or adjusting the pump speed to avoid resonant frequencies.

Maintenance and Lifespan Extension Recommendations:

1. Regular Inspection
Inspect the elbow's appearance and connections every six months, focusing on signs of rust, deformation, or leakage. In high-temperature and high-pressure environments, the inspection cycle should be shortened.

2. Corrosion Prevention Measures
Metal elbows installed outdoors should be coated with anti-rust paint. In chemical environments, plastic or rubber lining can be considered. Plastic elbows should be protected from direct sunlight to prevent aging.

3. Spare Parts Management
Spare parts should be stocked for elbows in critical locations. It is recommended to choose the same brand and specifications as the original parts to ensure compatibility in emergency replacements.

Conclusion:

The selection of 45° elbow fittings requires comprehensive consideration of materials, specifications, and connection methods to match actual working conditions. During installation, attention should be paid to welding quality, spatial layout, and support fixation; avoiding later problems; regular maintenance and targeted solutions to leakage and resistance issues can significantly improve system stability.
