Common Cutting Methods and Precautions for Carbon Steel Pipes

Carbon steel pipes (CS Pipe) are a common material in the industrial field, widely used in construction, machinery manufacturing, pipeline transportation, and other fields. Cutting, as a crucial step in carbon steel pipe processing, directly affects the quality of the finished product and its subsequent use. As a carbon steel pipe manufacturer (Hunan Standard Steel), let's discuss the key technical points and precautions for carbon steel pipe cutting.

1. Common Carbon Steel Pipe Cutting Methods

There are many ways to cut carbon steel pipes, each suitable for different scenarios. They can be mainly categorized as follows:

- Flame Cutting

Flame cutting utilizes the high temperature generated by the combustion of a mixture of oxygen and fuel gas to locally melt the steel pipe. Simultaneously, high-pressure oxygen is used to blow away the molten slag, completing the cut. This method is relatively low-cost and suitable for thicker carbon steel pipes, but the cut surface may be rough, potentially requiring subsequent grinding.

- Plasma Cutting

Plasma cutting uses ionized gas to form a high-temperature plasma arc, rapidly melting the metal and blowing away the molten portion. It offers faster cutting speeds and higher precision than flame cutting, making it suitable for medium to thick plates, but the equipment cost is relatively high.

- Laser Cutting

Laser cutting uses a high-energy laser beam focused on the surface of a steel pipe, causing the material to melt or vaporize rapidly. This method offers extremely high precision and smooth cuts, making it suitable for thin-walled carbon steel pipes and high-precision processing. However, it requires a significant investment in equipment and is best suited for mass production.

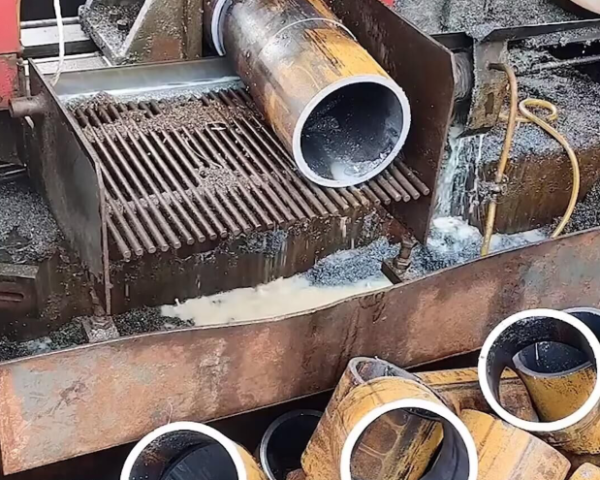

- Sawing

Sawing is divided into band sawing and circular sawing, suitable for small-batch or single-piece production. Band sawing is suitable for large-diameter steel pipes, with a slower but more stable cutting speed; circular sawing is more efficient but may produce more burrs.

- Waterjet Cutting

Waterjet cutting uses a high-pressure water jet mixed with abrasive particles for cutting. It is a cold cutting method that does not create a heat-affected zone, making it suitable for temperature-sensitive applications or situations where deformation is not permitted. However, it has higher operating costs.

2. Preparation Before Cutting

Regardless of the cutting method used, thorough preparation is crucial, directly affecting cutting quality and safety.

- Material Inspection

Before cutting, the material, wall thickness, diameter, and other parameters of the steel pipe must be confirmed to ensure the selection of an appropriate cutting process. If the steel pipe surface has rust or oil stains, it should be cleaned first to avoid affecting the cutting effect. - Equipment Debugging

Adjust the parameters of the cutting equipment according to the specifications of the steel pipe, such as the oxygen pressure for flame cutting and the current for plasma cutting. Good equipment condition is essential for a stable cutting process.

- Safety Precautions

High temperatures, sparks, or metal dust may be generated during the cutting process. Operators must wear protective eyewear, gloves, and other necessary equipment. The work area should be well-ventilated.

3. Key Control Points in the Cutting Process

In actual operation, the following factors require special attention:

- Cutting Speed

Excessive speed may result in uneven cuts or even incomplete cuts; excessively slow speeds can easily cause overheating of the material, affecting cut quality. The optimal cutting speed for different cutting methods needs to be adjusted based on experience or equipment specifications.

- Cut Quality

A good cut should be smooth and burr-free, especially for pipes requiring welding, as cut quality directly affects weld strength. If an uneven cut is found, it may be necessary to adjust the equipment or replace cutting consumables (such as plasma nozzles, saw blades, etc.).

- Heat-Affected Zone Control

High-temperature cutting methods (such as flame and plasma cutting) heat the area near the cut of the steel pipe, potentially causing changes in material hardness or deformation. For high-precision machining, heat input must be controlled or a cold cutting method should be selected.

4. Post-Cutting Processing

After cutting, subsequent processing is required to ensure the performance of the steel pipe.

- Deburring

Sawing or plasma cutting may produce burrs, which can be manually removed with tools such as files and grinding wheels, or a dedicated deburring machine can be used to improve efficiency.

- End Face Flatness Inspection

If the steel pipe needs to be butt-welded, the perpendicularity and smoothness of the end faces are important. A right-angle ruler or professional instruments can be used for inspection, and secondary processing may be necessary.

- Rust Prevention Treatment

Newly cut steel pipe cuts exposed to air are prone to rust, especially in humid environments. Rust-preventive oil can be applied or the pipe can be moved to the next processing step as soon as possible.

How to Choose the Appropriate Cutting Method?

When choosing a cutting method, the following factors should be considered:

- Cost
Flame cutting equipment has low initial investment but high labor costs; laser cutting is highly efficient but the equipment is expensive. Small-batch processing may be more suitable for outsourcing to specialized manufacturers.

- Precision Requirements

High-precision parts are preferably cut using laser or waterjet cutting; ordinary structural parts can be cut using flame or plasma cutting.

- Material Properties

Thick-walled steel pipes are not suitable for laser cutting, while thin-walled pipes may suffer severe deformation if cut using flame.

In summary, carbon steel pipe cutting requires selecting the appropriate method based on specific needs and strictly controlling process parameters. Whether you operate it yourself or outsource to a processing plant, understanding these basics will help you better control quality. For more detailed questions, it is recommended to consult a professional metal processing technician.
