How to Select Steel Pipes of Different Materials in Automobile Manufacturing?

In the vast automotive manufacturing industry chain, steel pipes, as a key structural material, bear multiple responsibilities, including transmitting power, supporting the vehicle body, and ensuring safety. From the chassis frame to the exhaust system, from the driveshaft to the airbag conduit, the selection of steel pipe materials varies greatly in different parts. This article will deeply analyze the logic and strategies of steel pipe material selection in automobile manufacturing from three dimensions: materials science, engineering requirements, and industry trends.

Core Requirements of Automotive Steel Pipes: Balancing Performance, Cost, and Safety

1. Rigidity Requirements of Mechanical Properties

The primary task of automotive steel pipes is to meet the mechanical requirements of specific components. For example:

- Driveshaft steel pipes need to withstand high torque and rotational stress, and high-strength alloy steel (such as 42CrMo) is often used, with a tensile strength exceeding 1000MPa.

- Chassis frame steel pipes need to balance rigidity and lightweighting; duplex steel and boron steel, with their high yield strength, have become mainstream.

- Exhaust system pipes, due to prolonged exposure to high temperatures, require heat-resistant stainless steel (such as 409L), with creep strength sufficient for a service life of 100,000 hours.

2. Practical Considerations for Cost Control

Automakers must balance performance and cost when selecting materials:

- Carbon steel pipes, due to their low price, are often used in non-load-bearing structural components (such as seat supports).

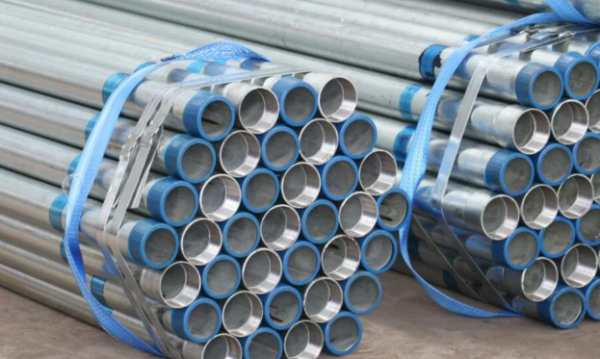

- Galvanized steel pipes (GI pipes) improve corrosion resistance through surface treatment, increasing costs by approximately 15%, but reducing subsequent maintenance expenses.

- Titanium alloy steel pipes, while possessing advantages in high strength and lightweight design, have a unit price exceeding 100,000 RMB/ton, and are only used in high-end sports cars or aerospace applications.

3. Safety and Regulatory Red Lines

International standards (such as ISO 6892) set clear requirements for steel pipe performance:

- Collision safety steel pipes must pass dynamic impact tests (e.g., deformation <30% in a frontal impact at 100km/h).

- Environmental regulations are driving the shift from ordinary stainless steel to low-nickel ferritic stainless steel in exhaust systems to reduce heavy metal pollution.

The Material Selection Logic for Steel Pipes in Five Typical Scenarios:

1. Chassis and Frame: The Dominance of High-Strength Steel

- Material Selection: Hot-formed steel, martensitic steel

- Technological Highlights: Combining steel pipes of different thicknesses and strengths using laser welding technology to achieve lightweighting and localized reinforcement.

- Case Study: The Tesla Cybertruck uses a 30X cold-rolled stainless steel unibody frame, increasing torsional stiffness by 50%.

2. Exhaust System: The Balance Between Corrosion Resistance and Thermal Management

- Material Upgrade Path: 409L stainless steel → 439 stainless steel → Ferritic stainless steel (with added niobium and titanium).

- Innovative Solution: Double-layer steel pipe structure (corrosion-resistant inner layer, heat-insulating outer layer) to reduce the impact of exhaust gas temperature on surrounding components.

3. Driveshaft: The Balance Between Lightweighting and Fatigue Life

- Mainstream Materials: Medium carbon alloy steel (40Cr), seamless steel pipes for hollow driveshafts (wall thickness 3-5mm). - Technological Breakthrough: Carbon fiber-steel tube composite structure (40% weight reduction), but costs increase threefold, used only in racing.

4. Safety Structural Components: The paradoxical balance of energy absorption and rigidity

- Front bumper beam: Multi-cavity high-strength steel tube.

- Crull area design: Utilizes low-yield-strength steel, guiding the deformation path through a pre-bending structure.

5. Specific Requirements for New Energy Vehicles

- Battery pack bracket: Magnesium alloy coated steel tube (resistant to electrolyte corrosion).

- Hydrogen fuel tank: 316L stainless steel inner liner + carbon fiber winding, pressure resistance up to 70MPa.

Conclusion:

The selection of steel tubes for automotive manufacturing is not a simple matter of matching specifications, but a systematic project integrating materials science, manufacturing processes, and market strategies. With the deepening of the new energy revolution and intelligent manufacturing, future automotive steel tubes will evolve towards being "stronger, lighter, and smarter." For automakers, only by breaking through core technological barriers can they occupy a commanding position in the global industrial chain.
