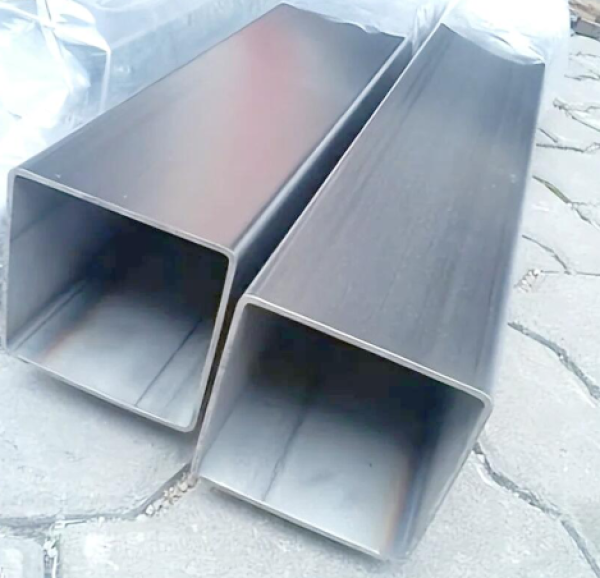

Quality Inspection Standards for Galvanized Square Tubes

Galvanized square tubes are widely used in construction, machinery manufacturing, and many other fields. Their quality directly affects the safety and stability of projects.

The specific quality inspection methods for galvanized square tubes are as follows:

Appearance Quality Inspection:

1. Surface Defects

The surface of the galvanized square tube should be smooth and flat, free from obvious defects such as cracks, sand holes, scabs, and folds. Cracks severely reduce the strength of the tube, making it prone to breakage under stress; sand holes may cause internal corrosion, shortening its service life; scabs and folds affect the appearance of the tube and may also affect its performance. During inspection, visual inspection can be used to carefully observe various parts of the tube surface.

2. Galvanized Layer Quality

The galvanized layer should be uniform and continuous, free from incomplete galvanizing, nodules, peeling, etc. Incomplete galvanizing will cause parts of the tube to lose the protection of the galvanized layer, making them prone to rust and corrosion; nodules will affect the dimensional accuracy and appearance of the tube; peeling will cause the galvanized layer to separate from the tube substrate, reducing the protective effect of the galvanized layer. A preliminary judgment can be made by visual inspection combined with touch. For some uncertain cases, professional coating thickness gauges and other equipment can be used for testing.

3. Color Consistency

The color of galvanized square tubes should be basically consistent, with no obvious color difference. Excessive color difference may indicate problems with the galvanizing process, or that the tubes have been contaminated or oxidized to varying degrees during production.

Dimensional Accuracy Inspection:

1. Tube Diameter and Wall Thickness

Tube diameter and wall thickness are important dimensional parameters of galvanized square tubes and must meet relevant standards. Excessive deviation in tube diameter will affect the connection and fit between the tube and other components; uneven wall thickness will lead to uneven strength distribution of the tube, making it prone to local deformation or damage under stress. During inspection, calipers, micrometers, and other measuring tools can be used for measurement. Measurement locations should be selected at different parts of the tube to ensure the accuracy of the measurement results.

Post-Galvanizing Dimensions: Note that galvanizing increases thickness, affecting the fit dimensions; the contract must clearly specify whether the dimensions to be inspected are "before galvanizing" or "after galvanizing".

2. Length and Curvature

The length of the pipes should meet the contract requirements, and the deviation should be within the specified range. Curvature is also an important inspection indicator; excessive curvature will affect the installation and use of the pipes. The curvature is generally checked using a string method or a straightedge method. The string or straightedge is placed against the surface of the pipe, and the maximum gap between the pipe and the string or straightedge is measured to determine whether the curvature meets the standard. In addition, laser leveling instruments or the platform + feeler gauge method are also commonly used, providing more accurate measurements.

Chemical Composition Inspection:

The chemical composition of galvanized square pipes directly affects their mechanical properties and corrosion resistance. It is usually necessary to analyze the content of elements such as carbon, silicon, manganese, sulfur, and phosphorus in the pipes. Excessive carbon content will increase the hardness of the pipes but reduce their toughness; excessive content of impurities such as sulfur and phosphorus will reduce the corrosion resistance and weldability of the pipes. Chemical composition inspection generally uses methods such as spectral analysis to determine whether the content of each element meets the standard requirements by testing pipe samples.

Mechanical Property Testing:

1. Tensile Test
The tensile test is one of the important methods for determining the mechanical properties of galvanized square tubes. Through the tensile test, indicators such as yield strength, tensile strength, and elongation of the tube can be obtained. Yield strength reflects the stress at which the tube begins to undergo plastic deformation; tensile strength represents the maximum tensile stress the tube can withstand; elongation reflects the tube's plastic deformation capacity. When conducting a tensile test, the specimen should be prepared according to the requirements of relevant standards, and the test should be performed using equipment such as a universal testing machine.

2. Bending Test
The bending test is mainly used to test the bending performance and welding quality of the tube. The tube is bent at a specified bending radius and angle, and the surface of the tube is observed for defects such as cracks and delamination. If these defects appear during the bending process, it indicates that there may be a problem with the quality of the tube.

3. Impact Test
The impact test is used to evaluate the toughness of the tube under impact load. By applying an impact load to the tube specimen, the energy absorbed by the specimen during the impact is measured to determine the toughness of the tube. Impact tests are generally conducted using equipment such as a pendulum impact testing machine.

Corrosion Resistance Testing:

1. Salt Spray Test: The salt spray test is a commonly used method to simulate a marine environment for corrosion resistance testing. The galvanized square and rectangular tube sample is placed in a salt spray test chamber and sprayed under specified conditions. After a certain period, the corrosion on the tube surface is observed. The degree of corrosion is used to assess the tube's corrosion resistance.

2. Immersion Test: The immersion test involves immersing the tube sample in a specific corrosive medium. After a certain period, the changes in the tube's mass, corrosion rate, and other indicators are measured to evaluate the tube's corrosion resistance. This method is more suitable for research and development or assessment in specific media environments and is rarely used in routine trade acceptance.

Summary:

Quality inspection of galvanized square tubes is a systematic process that requires comprehensive testing from multiple aspects, including appearance quality, dimensional accuracy, chemical composition, mechanical properties, and corrosion resistance. Only by strictly adhering to relevant standards can the quality of galvanized square tubes be ensured to meet requirements, thus guaranteeing the safety and stability of the project.
