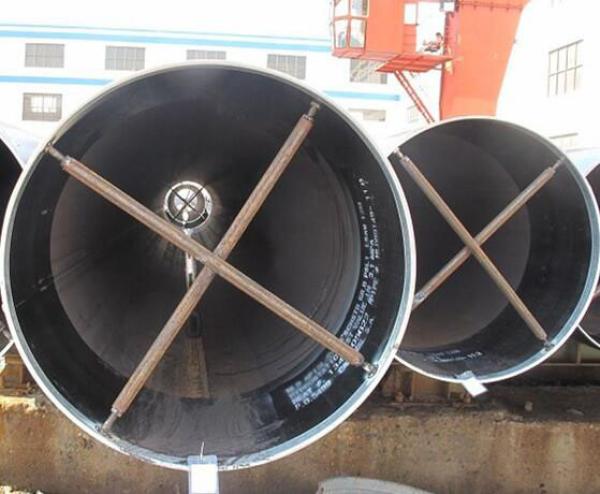

Large Diameter Carbon Steel Pipe Connection Guide

Large Diameter Carbon Steel Pipe (CS Pipe) Connection Methods:

1. Flange Connection: A Flexible Solution

Flange connections are like attaching removable 'buttons' to pipes, especially suitable for applications requiring regular maintenance:
* Wafer Flange: Two flanges are clamped together with bolts to secure the gasket; good pressure resistance.
* Welded Flange: The flanges are welded first, then bolted; suitable for high-pressure and high-temperature environments.
* Quick-Installation Flange: With clamp design, installation speed is increased by over 50%.

Note: Flange surfaces must be kept clean. The gasket material (rubber, graphite, or metal) should be selected based on the medium characteristics.

2. Welded Connection: A Long-Lasting and Robust Choice
Welding can turn pipes into a 'solid block,' suitable for buried or stationary applications:
* Arc Welding: High versatility, requires professional welder operation.
* Gas ​​Shielded Welding: Smoother weld seam, suitable for thin-walled pipes.
* Laser Welding: High precision, but higher equipment cost.

Before welding, the beveling must be done; after welding, visual inspection and necessary non-destructive testing are required. Preheating is necessary for welding in winter to prevent cracking.

3. Mechanical Connections: A Powerful Tool for Rapid Construction

A smart choice when you don't want to use open flames, these "pipe LEGOs" are becoming increasingly popular:

Groove Connection: Uses rubber rings and clamps, offering excellent shock resistance.

Crimp Connection: Utilizes specialized tools for one-time molding, making construction the fastest.

Threaded Connection: Commonly used for small diameters; DN500 requires special reinforcement design.

When using mechanical connections, pay attention to the flatness of the pipe ends. After installation, a pressure test is necessary to verify the seal.
