Common Corrosion Protection Methods and Selection Guide for Carbon Steel Pipes

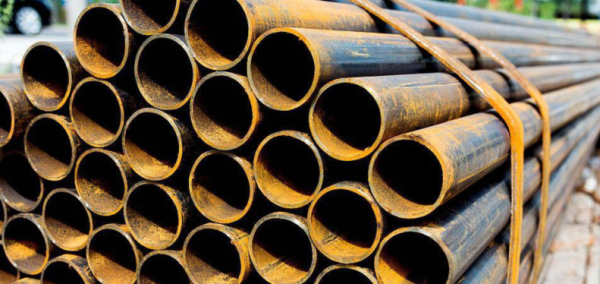

Carbon steel pipes (CS Pipe) are widely used in industrial applications for transporting water, gas, oil, and various chemical media. However, carbon steel itself is prone to electrochemical or chemical reactions with water, oxygen, acids, alkalis, and salts in the environment, leading to corrosion. This severely affects pipeline lifespan, system safety and stability, and can even cause environmental pollution accidents. Therefore, implementing scientific and effective corrosion protection measures is crucial. This article systematically reviews the mainstream corrosion protection methods for carbon steel pipelines, deeply analyzes their technical principles, processes, applicable scenarios, advantages, and disadvantages, and provides comprehensive selection suggestions, aiming to provide a practical reference guide for engineering design and maintenance personnel.

Effective corrosion protection strategies are usually based on isolating the corrosive medium from the metal substrate or changing the electrochemical state of the metal surface. Corrosion protection methods for carbon steel pipelines can be mainly summarized into three categories: surface treatment and physical isolation, chemical conversion and corrosion inhibition, and protective coatings and linings. In practical applications, a combination of methods is often selected based on the corrosive environment, media characteristics, design life, construction conditions, and cost budget.

Main Corrosion Protection Methods for Carbon Steel Pipes:

1. Surface Treatment and Physical Isolation Method

The core of this method is to establish a physical barrier between the pipe and the corrosive environment, or to enhance protective capabilities by altering the surface condition.

a. Sandblasting/Shot Blasting

Principle and Process: High-speed abrasive (steel shot, quartz sand, etc.) is used to impact the pipe surface, thoroughly removing scale, rust, old coatings, and dirt, resulting in a clean metal substrate with a certain degree of roughness. This is an indispensable pretreatment step before most coating applications, directly affecting the coating's adhesion and lifespan.

Applicable Scenarios: Pretreatment of the outer surface of pipes before coating, especially in new projects or the renovation of old pipes.

Advantages: Thorough cleaning, high efficiency, and can create an anchor pattern conducive to coating adhesion.

Disadvantages: Generates dust and noise, requiring supporting environmental protection equipment; may cause deformation in thin-walled pipes.

b. Corrosion-resistant Lining

Principle and process: A layer of corrosion-resistant non-metallic material, such as rubber (natural rubber, butyl rubber, etc.), plastic (polyethylene, polypropylene), ceramic, or fiberglass, is bonded or cast onto the inner wall of the pipe to form a strong protective layer. Construction methods include bonding, wrapping, centrifugal casting, or hot lining.

Applicable scenarios: Inner wall protection for pipes transporting highly corrosive media (such as acid, alkali, and salt solutions).

Advantages: Excellent corrosion resistance; specialized lining materials can be selected based on the characteristics of the media.

Disadvantages: High cost; complex construction process; extremely high requirements for substrate surface treatment; difficult repair.

2. Chemical Conversion and Corrosion Inhibition Methods

A stable protective film is generated on the metal surface through a chemical reaction, or substances are added to the system to inhibit corrosion reactions.

a. Pickling and Phosphating

Principle and process: Hydrochloric acid, sulfuric acid, or phosphoric acid solutions are used to remove oxides and minor rust from the pipe surface. Simultaneously, under the action of phosphoric acid, a water-insoluble crystalline phosphate conversion film (phosphating film) is formed on the metal surface. This film improves coating adhesion and provides short-term rust protection.

Application Scenarios: Pre-treatment of small-diameter pipes or components in factories before coating.

Advantages: Excellent coating adhesion after treatment.

Disadvantages: Generates acid mist and waste liquid, resulting in high environmental treatment costs; unsuitable for large-scale or on-site construction.

b. Passivation Treatment

Principle and Process: For stainless steel or pickled carbon steel, oxidizing solutions such as nitric acid and citric acid are used to treat the metal surface, forming an extremely thin but dense oxide film (passivation film), significantly improving its corrosion resistance.

Application Scenarios: Process pipelines requiring high cleanliness and corrosion resistance, such as in the food and pharmaceutical industries.

Advantages: Enhances the self-corrosion resistance of the base metal.

Disadvantages: The film layer is thin and must be protected from mechanical damage; typically used as an auxiliary protective measure.

c. Adding Corrosion Inhibitors

Principle and Process: Adding trace amounts of chemical substances that can be adsorbed onto metal surfaces or alter the properties of the medium (such as circulating water, oil, or gas) to the pipeline medium (e.g., circulating water, oil, or gas) inhibits anodic or cathodic reactions and slows down the corrosion rate.

Applicable Scenarios: Closed-loop systems, such as boiler feedwater systems, central air conditioning circulating water systems, and oil and gas pipelines.

Advantages: No need to modify the pipeline itself; flexible application; economical and effective for corrosion protection within the system.

Disadvantages: Requires continuous addition and concentration monitoring; selective application to the medium; potential environmental restrictions.

3. Protective Coating and Lining Method

Applying one or more layers of functional coatings to form a long-term, stable primary protective layer. This is the most widely used corrosion protection method.

a. Liquid Coating

Principle and Process: Applying coatings such as epoxy resin, polyurethane, acrylic, and fluorocarbon to the pipeline surface via brushing, rolling, or airless spraying, followed by curing to form a continuous film. A typical system uses a primer-intermediate coat-topcoat combination, which respectively provides rust prevention, thickening, and weather resistance.

Applicable Scenarios: Suitable for external corrosion protection of pipelines in most environments, and for some internal wall protection where corrosion is not severe.

Advantages: Diverse selection, flexible matching, suitable for complex shapes; mature technology, easy on-site repair.

Disadvantages: Solvent-based coatings have VOC emission issues; coating quality is affected by ambient temperature and humidity; long curing time.

b. Powder Coating

Principle and Process: Solid powders such as epoxy and polyethylene are electrostatically sprayed onto the grounded pipeline surface, then heated, melted, leveled, and cured to form a uniform film. This is usually done on an automated production line in a factory.

Applicable Scenarios: External corrosion protection of small and medium diameter pipes, fittings, valves, etc., especially in situations requiring excellent mechanical properties and chemical resistance.

Advantages: Solvent-free, environmentally friendly; dense coating, uniform thickness, high mechanical strength; thicker film formed in one pass, high efficiency.

Disadvantages: Requires a high-temperature curing oven, resulting in high energy consumption; unsuitable for ultra-large sizes or on-site construction; repairs after damage are troublesome.

c. Thermal Spray Metal Coating

Principle and Process: Zinc, aluminum, or their alloy wires are heated to a molten state using an electric arc, plasma, or flame, and then sprayed at high speed onto the pipe surface to form a metal coating. The zinc/aluminum coating acts as a sacrificial anode, providing cathodic protection to the steel substrate, and its own corrosion products also provide protection.

Applicable Scenarios: Large steel structures, tank exteriors, and pipelines in harsh industrial atmospheres, marine environments, and other heavily corrosive areas.

Advantages: The coating and substrate are metallurgically bonded, resulting in strong adhesion; long anti-corrosion life (up to 20 years or more); can be applied on-site.

Disadvantages: High equipment investment, demanding process requirements; rough surface, usually requiring a sealing coating; high cost.

d. Cathodic Protection

Principle and Process: By applying an external current or connecting a more reactive metal (such as a magnesium or zinc anode), the carbon steel pipe being protected becomes an electrochemical cathode, thereby inhibiting its anodic dissolution (corrosion) reaction. Divided into sacrificial anode method and impressed current method.

Applicable scenarios: Critical areas where conventional coatings are difficult to fully protect or prone to localized corrosion, such as buried pipelines, subsea pipelines, and tank bottom plates. Must be used in conjunction with a high-quality coating.

Advantages: Effectively controls localized corrosion and corrosion at coating defects.

Disadvantages: Complex system design, requires continuous monitoring and maintenance; may interfere with adjacent metal structures.

Core selection considerations:

1. Corrosion environment analysis: Clearly define the environment in which the pipeline is located (atmosphere, soil, seawater, industrial atmosphere) and the composition, temperature, pressure, and flow rate of the transported medium. This is the fundamental basis for selection.

2. Design life requirements: The required corrosion protection life of the project directly affects the technology selection and material grade.

3. Total life cycle cost: Comprehensively consider initial investment, maintenance costs, and replacement costs, rather than just focusing on the initial quotation.

4. Construction condition limitations: Assess whether it is prefabricated in the factory or constructed on-site, and limitations such as space, climate, and construction period.

5. Environmental and Safety Standards: Complies with increasingly stringent VOC emission, waste disposal, and construction safety regulations.
