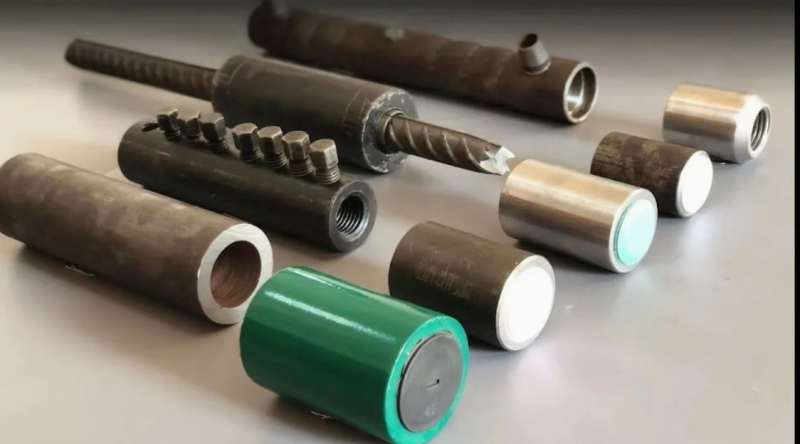

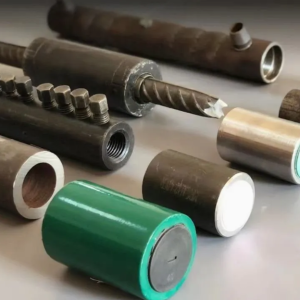

Understanding the Six Types of Rebar Couplers for Effective Reinforcement Connections

In the construction industry, proper reinforcement connections are critical for ensuring the integrity and durability of structures. One essential component in achieving these robust connections is the rebar coupler. As we delve into the six types of rebar couplers, we will explore the specific applications and benefits of each, while focusing primarily on standard, extended, locking nut, and left-right thread couplings.

1. Standard Rebar Coupler

The standard rebar coupler is designed for applications where there may be potential for free rotation. This coupling is used to connect rebar at the ends where forces are applied directly opposite each other, such as bridging joints. In scenarios where rotational movement is not a concern, the standard coupler is the ideal choice, along with the option of a reduced diameter coupler if needed.

2. Extended Rebar Coupler

An extended rebar coupler is designed for instances where the rebar is excessively long and dense, making it inconvenient to rotate. In this case, the coupler is pre-threaded onto one piece of rebar, with the other end of the coupler then engaging the threaded end of another rebar piece. This allows the connection to be established by rotating the rebar approximately half a turn. For these applications, a standard rebar coupler is typically recommended due to its effective locking mechanism.

3. Locking Nut Rebar Coupler

When dealing with situations in which the rebar cannot rotate—for example, in bent or curved rebar, bridges, and pile cages—locking nut couplers become indispensable. These couplers integrate a locking nut that is initially screwed onto the extended thread of one rebar piece. The end of a second rebar is then threaded into the coupler and locked in place with the nut. This connection method can utilize either standard or expanded mouth coupling designs.

4. Left-Right Thread Rebar Coupler

Lastly, the left-right thread rebar coupler is specifically designed for situations where the rebar cannot rotate, yet requires adjustment of the internal forces within the rebar. This type of connection is particularly useful in construction joints and post-cast areas where precise tensioning is required. The coupler features a dual-thread system, allowing for loosening or tightening of two pieces of rebar in one rotational direction, leading to greater control and adaptability in the connection process.

In conclusion, selecting the appropriate rebar coupler is paramount for ensuring the structural soundness of reinforced concrete frameworks. Each type of rebar coupler—whether it be the standard, extended, locking nut, or left-right thread—serves unique purposes depending on the specifics of the project.
