The Corrosion Protection Systems for SSAW Steel Pipes

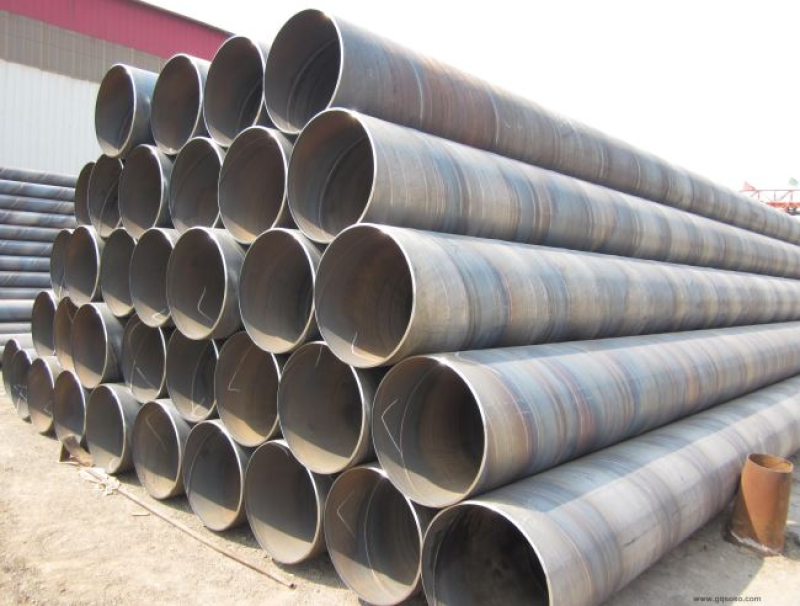

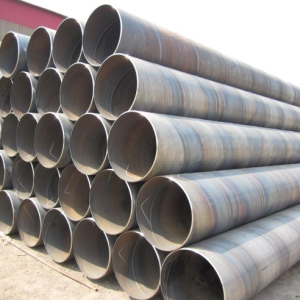

In the realm of industrial applications, SSAW (Spiral Submerged Arc Welded) steel pipes are pivotal in various sectors, particularly in transporting gas and fluids. In this article, we will delve into the four primary corrosion protection systems utilized for SSAW steel pipes: the three-layer PE anti-corrosion system, fused epoxy powder (FBE), coal tar enamel, and polypropylene reinforced fiber tape.

1. Three-Layer PE Anti-Corrosion System

The three-layer PE anti-corrosion system comprises an epoxy primer (≥80μm), an adhesive layer (170-250μm), and a polyethylene topcoat (2.5-3mm). This robust system offers exceptional impact resistance, achieving a strength of 10J/mm, making it suitable for various soil conditions.

2. Fused Epoxy Powder (FBE)

Fused epoxy powder has a single-layer structure ranging between 300-500μm. Renowned for its superior compatibility with cathodic protection systems, FBE is applied through electrostatic spray at a pre-heated temperature of 230±5°C. Once cured, it develops a ceramic-like structure that contributes to its durability and maintenance of pipeline integrity, especially in harsh environments.

3. Coal Tar Enamel

Historically, coal tar enamel was a staple in the corrosion protection of steel pipes, employing a traditional high-temperature wrapping technique to create a protective layer of 3-5mm thickness. While the material performs admirably against root penetration from plant life, its associated environmental concerns have led to a gradual phase-out in favor of more eco-friendly alternatives.

4. Polypropylene Reinforced Fiber Tape

Polypropylene reinforced fiber tape is used for on-site seam repairs and boasts a tensile strength of ≥18MPa. It’s crucial that the overlap width with the main coating exceeds 100mm to ensure effective protection. Notably, during the construction of the China-Russia East Route Natural Gas Pipeline Project, this technology significantly improved the uniformity of the cathodic protection current density by 40% at the repair seams, highlighting its effectiveness in enhancing the overall corrosion management of SSAW steel pipes.

Ensuring the longevity and reliability of SSAW steel pipes begins with a thorough understanding of the various external corrosion protection systems available. Whether through the multilayer PE system, the robust properties of fused epoxy powder, or innovative repair solutions like polypropylene reinforced fiber tape, each method presents its unique advantages. As industries continue to evolve, implementing these advanced corrosion protection strategies is essential to safeguard pipeline integrity and enhance operational efficiency. By adopting these technologies, we can extend the lifespan of SSAW steel pipes, ultimately leading to more sustainable industrial practices.
