How Micarta Insulation Material Prevents Critical Dielectric Failure

High-voltage power distribution networks, transformers, and industrial switchgear operate under extreme electrical stress, continuous thermal cycling, and heavy mechanical loads. When insulation systems break down, the resulting dielectric arc flashes and flashovers cause severe equipment destruction, uncontained fires, and extended power outages. Integrating high-performance micarta insulation material provides a reliable mechanical barrier and dielectric shield that halts electrical tracking and withstands severe industrial environments. By combining dense thermosetting resins with woven glass, canvas, or linen reinforcements, this industrial laminate delivers exceptional dielectric strength and mechanical stability, securing high-voltage power infrastructure against catastrophic failure.

Understanding the Role of Micarta Insulation Material in High-Voltage Protection

Dielectric breakdown occurs when an insulating medium fails to withstand applied voltage, creating an conductive pathway through the material or across its surface. In power distribution systems, high electric fields generate localized ionization known as partial discharge. Over time, partial discharge degrades standard synthetic polymers, creating microscopic carbon tracks that eventually result in complete phase-to-phase short circuits.

A properly engineered micarta insulation material halts this degradation cycle through superior dielectric breakdown voltage and high arc resistance. The dense, non-conductive composite prevents free electron migration under intense electrical fields, blocking potential flashover paths between energized conductors and grounded enclosures. By maintaining physical isolation under sustained voltage stress, this robust composite material eliminates the primary drivers of dielectric insulation failure.

Mechanical Rigidity of Micarta Insulation Under Heavy Fault Loads

Electrical insulation in power distribution hardware must do more than simply block electrical current. During unexpected short-circuit events, magnetic fields generate massive electrodynamic forces that pull and push adjacent copper busbars with thousands of pounds of instantaneous thrust. Insulating components must possess high mechanical strength to absorb these impact loads without fracturing or flexing.

High-density thermoset laminates exhibit high flexural, compressive, and tensile strength ratings. When deployed as busbar supports, structural spacers, or mounting plates, these materials hold heavy conductive elements in exact spatial alignment during severe electrical fault conditions. Preventing physical deflection ensures that required air clearance gaps remain intact, preventing secondary arc flashes from cascading through switchgear cabinets.

Primary Industrial Grades of Micarta Insulation

Choosing the correct industrial laminate grade requires matching specific resin systems and reinforcement fabrics to your operating environment. Specialized resin matrices produce distinct electrical, mechanical, and thermal performance characteristics.

Selecting a canvas-based or glass-based micarta insulation composite allows facility managers to balance cost against specific mechanical and environmental demands, ensuring long-term operational safety across diverse plant conditions.

Structural Advantages of Heavy-Duty Micarta Board

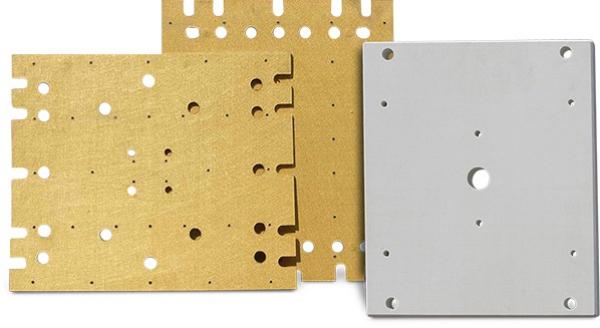

For heavy industrial applications requiring custom component fabrication, utilizing a rigid micarta board offers significant structural advantages over conventional unreinforced plastics.

Exceptional Machining Tolerances and Dimensional Stability

Dense thermoset laminate boards can be precision machined, punched, milled, drilled, and tapped using standard metalworking tooling. Unlike soft thermoplastics that warp, melt, or gum up under high-speed milling cutters, thermoset composites retain tight dimensional tolerances. This precision machining capability enables the creation of custom insulating barriers, complex arc chute assemblies, and interlocking transformer slot wedges.

Low Moisture Absorption and Chemical Resistance

Moisture intrusion is a major cause of dielectric breakdown. Water molecules absorbed into insulating materials increase internal conductivity, leading to thermal runaway and dielectric punch-through. Premium phenolic and epoxy glass boards feature low water absorption rates, making them immune to humidity spikes, oil immersion, and chemical splash. This low absorption capacity keeps dielectric dissipation factors low even in humid substations, marine environments, and outdoor transformer yards.

Long-Term Resistance to Thermal Aging

High operating temperatures accelerate structural degradation in standard electrical plastics. Continuous thermal stress causes plasticizer migration, embrittlement, and micro-cracking. Industrial thermoset boards maintain structural integrity and dielectric strength across wide temperature ranges, preventing premature material breakdown during prolonged equipment overloads.

Preventing dielectric failure in power generation and distribution systems requires selecting materials that withstand simultaneous electrical, mechanical, and thermal stresses. Deploying high-grade micarta insulation material provides an engineered defense against flashovers, tracking, and mechanical collapse. Whether installed as structural busbar supports, phase barriers, or transformer insulation, high-density thermoset laminates preserve structural integrity, lower maintenance costs, and ensure long-term power system reliability.
