The Role of J1939 ELD Cables in Modern Technology

In the rapidly evolving landscape of modern technology, the J1939 ELD cable assumes a pivotal role. This seemingly straightforward component forms a cornerstone in data transfer, especially within heavy-duty vehicles and machinery, rendering it an indispensable element within contemporary technological systems.

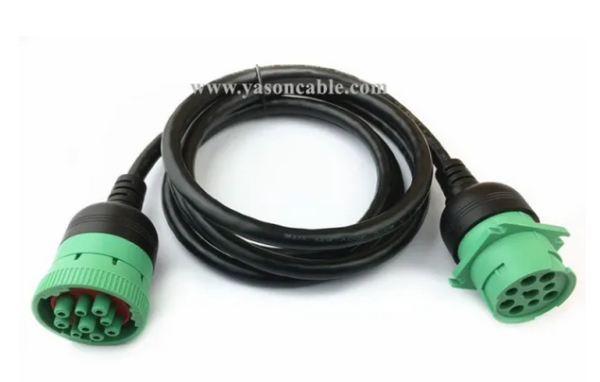

Understanding J1939 ELD Cables

The J1939 ELD cable, an indispensable element in the SAE J1939 network, specifically caters to heavy-duty vehicles and machinery. Employing a physical medium of shielded twisted pair, it features two wires with a characteristic impedance of 120 Ω, identified as CAN_H and CAN_L, symmetrically conducting electrical currents.

Integral to the Controller Area Network (CAN), serving as SAE J1939's physical layer, this network interconnects various Electronic Control Units (ECUs) within a vehicle, such as the Engine, Brake, and Transmission.

The significance of the J1939 ELD cable in data transmission is pivotal. It facilitates peer-to-peer and broadcast communication, supporting transport protocols and accommodating up to 1785 data bytes, enabling efficient network management. Furthermore, these cables demonstrate remarkable resilience in harsh conditions, enduring exposure to oil, fluids, equipment vibrations, and EMI/RFI interference, ensuring steadfast and dependable data transfer even in challenging operational environments. Undoubtedly, the reliability and endurance of the J1939 ELD cable position it as an essential component within contemporary technological frameworks.

Applications of J1939 ELD Cables in Modern Technology

J1939 ELD cables constitute an integral aspect of multiple contemporary technologies, notably in heavy-duty vehicles and machinery. These cables form a vital part of the SAE J1939 network, standardizing communication among various Electronic Control Units (ECUs) like the Engine, Brake, and Transmission.

The utilization of J1939 cables extends beyond conventional heavy-duty vehicles like trucks and buses. Their impact reverberates across diverse industries, either directly or through associated standards (e.g., ISO 11783, MilCAN, NMEA 2000, and FMS). These encompass forestry machinery, mining vehicles, military transport, agriculture, construction equipment, fire & rescue vehicles, and other applications spanning ships, pumping systems, e-buses, and power generation.

Furthermore, J1939 ELD cables assume a critical role in Electronic Logging Devices (ELD) designed for fleet management. An ELD records driving time in commercial motor vehicles, synchronizing data with the vehicle's engine. It monitors crucial engine data such as power status, vehicle motion, miles traveled, and engine hours. This reliance underscores the indispensable nature of J1939 ELD cables in ensuring the efficient and effective management of vehicle fleets.

Future Prospects of J1939 ELD Cables

The future trajectory for J1939 ELD cables promises extensive evolution across industries, envisioning broader integration in nascent technologies such as autonomous vehicles. These cables are poised to assume a crucial role in facilitating data communication and management systems within this domain. Additionally, advancements in connectivity standards and their convergence with IoT frameworks hold the potential to redefine their functionalities, reshaping the technological landscape through enhanced data exchange, amplified operational efficiency, and bolstered safety measures.
