Difference between OCTG and Line Pipe

Oil Country Tubular Goods (OCTG) and line pipe are both essential components in the oil and gas industry, playing distinct roles in the exploration, production, and transportation of hydrocarbons. Understanding the differences between OCTG and line pipe is crucial for stakeholders in the energy sector, including operators, engineers, procurement professionals, and investors.

1.OCTG

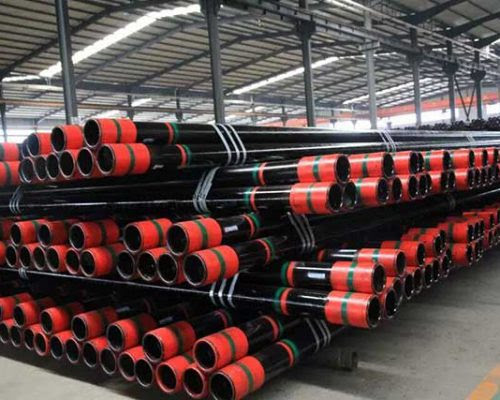

OCTG refers to a group of seamless and welded steel tubes or pipes designed for use in oil and gas well operations, including drilling, completion, and production activities. The primary types of OCTG products include casing, tubing, and drill pipes, each serving specific functions in the lifecycle of an oil or gas well.

(1)Casing

Casing pipes are installed inside the drilled wellbore to support the walls and prevent the formation from collapsing. They also provide a conduit for the extraction of oil or gas to the surface. Casing is available in various grades and sizes to accommodate different well depths, pressure levels, and downhole conditions.

(2)Tubing

Tubing is used to transport oil or gas from the producing formation to the surface. It is placed inside the casing and is subjected to internal and external pressure, as well as corrosive elements present in the well fluid.

(3)Drill Pipes

Drill pipes are heavy-duty seamless tubes used to rotate the drill bit and pump drilling fluids (mud) during the drilling process. They must withstand significant torsional and compressive forces while maintaining integrity under challenging downhole conditions.

OCTG products are subject to stringent technical specifications, material requirements, and quality control standards to ensure reliable performance in demanding downhole environments. These products are exposed to extreme pressures, temperatures, corrosive fluids, and mechanical stresses, making their design and manufacturing critical for well integrity and operational safety.

2.Line Pipe

Line pipe, also known as pipeline steel or transmission pipe, serves as the conduit for transporting oil, natural gas, and other hydrocarbons from production facilities to refineries, distribution hubs, and end-users. Unlike OCTG, which operates within the confines of a wellbore, line pipe is employed in the construction of long-distance pipelines that traverse varied terrains and climates.

3. OCTG vs Line Pipe

(1)Strength and Durability

Line pipe must exhibit high tensile strength, impact resistance, and toughness to withstand external loads, ground movement, and environmental stressors over extended distances.

(2)Weldability

Due to the extensive lengths of transmission pipelines, line pipe materials must be conducive to efficient and reliable welding processes, ensuring secure and durable connections between pipe segments.

(3)Corrosion Resistance

Line pipe is often exposed to diverse environmental conditions, including soil moisture, atmospheric elements, and chemical interactions, necessitating effective corrosion protection measures to prolong service life.

(4)Regulatory Compliance

Line pipe products must adhere to industry and government standards, such as API 5L (American Petroleum Institute) specifications, to ensure quality, safety, and environmental responsibility.

In summary, while both OCTG and line pipe are integral to the oil and gas industry, they serve distinct operational purposes. OCTG facilitates the drilling and production of oil and gas wells, providing structural support, fluid transport, and drilling capabilities within the wellbore. On the other hand, line pipe forms the backbone of transmission systems, enabling the safe, efficient, and reliable transportation of hydrocarbons over vast distances, connecting production centers with processing facilities and consumer markets. Understanding the unique roles, technical requirements, and performance expectations of OCTG and line pipe is essential for effectively managing exploration, production, and transportation activities in the dynamic energy landscape.
