Installing 2-Hour Fire-Rated Cable: Do’s and Don’ts

Installing a two-hour fire-rated circuit is about more than picking a cable with the right label. The rating depends on the entire assembly: cable, fixings, supports, trays, glands, and fire-stopping. Done well, the pathway keeps evacuation systems alive long enough for people to get out and responders to get in. Start with certified Fire rated cables, then match every component to the same performance target.

Plan the Route Before You Drill

Walk the run with the drawings in hand. Confirm which services are essential, where the egress paths sit, and how many penetrations you can avoid by using continuous pathways. Check ceiling types, ambient temperatures, and any corrosive environments. Agree on segregation from power, data, and security early so you do not fight for space later.

Do’s: Practices That Protect the Rating

• Use third-party certified cable and hardware from the same rating family. Keep batch numbers and datasheets with the job file.
• Maintain the specified bend radius and pulling tension. Tight bends can crack insulation and weaken performance under heat.
• Fix supports at the spacing set by the system test, not a generic rule of thumb. Heavier trays or closer spacing may be required.
• Protect edges. Fit grommets or edge trims where the cable touches metal to avoid abrasion during a fire event.
• Seal penetrations with tested fire-stopping systems that match the substrate and service type. Record approvals and photos.
• Label at both ends with circuit ID, origin, destination, and the rating requirement. Include a test date for future audits.
• Verify continuity, insulation resistance, and polarity before energising. Record instrument serials and calibration dates.

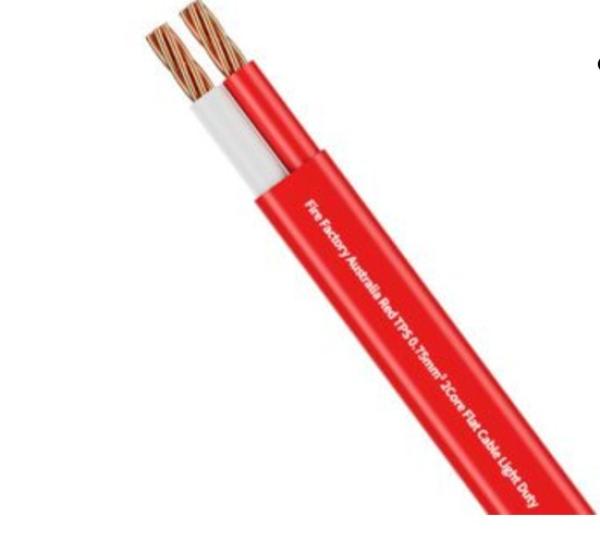

• Keep clear separation from general power. Where a project includes standard mains circuits on TPS cables, route them independently and avoid shared supports.

Don’ts: Errors That Fail Inspections

• Do not mix rated cable with non-rated fixings or random saddles. The chain is only as strong as its weakest part.
• Do not share hangers with HVAC, sprinklers, or cable types that may soften and drop during a fire.
• Do not overfill trays or conduits. Exceeding fill can drive up temperature and make pulls rough, which damages the sheath.
• Do not crush the cable with overdriven clips or sharp metal ties. Use specified cleats or straps and a torque-limited tool.
• Do not leave unrestrained loops above ceilings. Slack can snag or fail when heated.
• Do not assume outdoor or plant rooms are the same. Some projects call for high-temperature polymers such as Radox cable in specific zones; match accessories accordingly.

Commission, Document, and Hand Over

Run the system live with its actual load. Test alarm tones, emergency lighting, smoke control, or PA/VA as the project requires. Check voltage drop on the longest legs and confirm device operation at the design current. Photograph key details like fire-stops, labels, and support types. Deliver a simple pack that includes drawings, test sheets, product certificates, and maintenance intervals.

Keep It Compliant

Australian jobs sit against the project specification and the Wiring Rules. Treat those as baseline, then follow the manufacturer’s instructions for the exact system you are using. A tidy method pays off: plan the route, use matched components, protect the cable mechanically, and record what you have built. That discipline is what keeps a two-hour rating intact when it matters.
