What Are The Methods of Lowering Oil Casing Pipe?

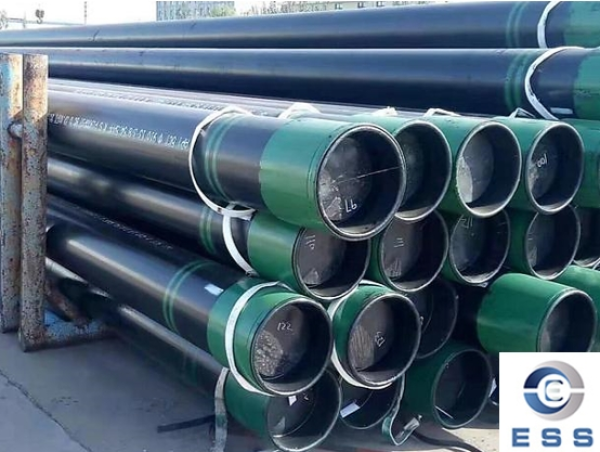

Oil casing pipe is an important equipment for supporting and fixing oil wells, and there are various ways to install and lower it. The following will introduce the installation methods and casing pipe methods of oil casing pipe in detail.

What are the installation methods of oil casing pipe?

1. Casing pipe operation

This is the most common method of installing oil casing pipe. After drilling is completed, the oil casing pipe is lowered into the well one by one, and the casing pipe is connected together by threading or welding. The casing pipe operation requires the use of special casing pipe equipment and tools to ensure the smooth lowering of the casing pipe and the reliability of the connection.

2. Cementing operation

After the casing pipe is lowered into the well, cementing operation is required to fill the annular space between the casing pipe and the well wall with cement slurry to fix the casing pipe and prevent the crossflow of formation fluids. Cementing equipment and cement slurry are required for cementing operations to ensure that the cementing quality meets the requirements.

3. Special installation methods

In some special cases, such as horizontal wells and large displacement wells, special oil casing pipe installation methods may be required. For example, in horizontal wells, the method of lowering casing pipe with continuous tubing can be used; in large-displacement wells, the method of lowering casing pipe with rotary guide can be used.

What are the methods for lowering oil casing pipe?

1. Conventional methods for lowering casing pipe

a. Single-thread lowering method

This is the most basic method for lowering casing pipe. Connect the casing pipes one by one, and lower them into the well one by one through the lifting equipment of the drilling platform, such as winch, overhead crane, traveling block, etc. Each time a casing pipe is lower, a thread connection operation needs to be performed at the wellhead, and a tightening operation needs to be performed to ensure that the casing pipe connection is firm. This method is suitable for various well depths and well conditions, but the operation speed is relatively slow.

b. Double or multiple-thread lowering method

In order to improve the efficiency of lowering casing pipe, in some cases, the method of lowering two or more casing pipes together and lowering them into the well is adopted. Two or more casing pipes are pre-connected at the casing pipe site, and then lower into the well at one time, which reduces the number of connections at the wellhead and thus increases the speed of lowering casing pipe. However, this method has higher requirements on the strength and connection quality of the casing pipe, and requires greater lifting force and more precise operation control.

2. Special casing pipe lowering method

a. Floating casing pipe lowering method

This method is to inject low-density drilling fluid or gas into the casing pipe to increase the buoyancy of the casing pipe in the wellbore, thereby reducing the friction resistance when the casing pipe is lowered. Especially in highly deviated wells, horizontal wells or deep wells, when the friction resistance of the casing pipe is large, the floating casing pipe lowering method can effectively reduce the difficulty of lowering and reduce the wear and damage of the casing pipe. After the casing pipe is lowered into place, the low-density fluid in the casing pipe is replaced with normal drilling fluid through circulation and other methods.

b. Rotating casing pipe lowering method

During the casing pipe lowering process, the casing pipe is slowly rotated in the wellbore by using a rotating device, which can change the contact state between the casing pipe and the wellbore wall, reduce friction resistance, and help the casing pipe to be better centered and improve cementing quality. The rotating casing pipe lowering method usually requires special rotating tools and equipment, and has certain requirements for the performance of the drilling fluid and the stability of the wellbore wall.

c. Hydraulic casing pipe method

A hydraulic power unit is used to drive the casing pipe down. The casing pipe is pressed into the well one by one through the powerful thrust provided by the hydraulic system. This method is suitable for some special well conditions, such as in hard formations or small wells, when traditional lifting equipment may not provide enough power to lower the casing pipe, the hydraulic casing pipe method can play an advantage. However, the hydraulic casing pipe equipment is relatively complex and costly.

Summary

In general, there are many ways to lower oil casing pipe, and the choice of the appropriate installation method depends on the specific situation and needs. When performing oil casing pipe operations, it is necessary to strictly follow the operating procedures and safety requirements to ensure that the equipment is safe and reliable and the wellhead operation is carried out smoothly.
