Common Carbon Steel Pipe Wall Thickness Selection in Engineering Design

Carbon steel pipes have wide applications in modern engineering, from oil and gas pipelines to structural supports for urban buildings. As a fundamental building material, carbon steel pipes bear critical responsibilities. In selecting carbon steel pipes, wall thickness is a crucial parameter that cannot be ignored, as it directly affects the pipe's performance, durability, and applicable environment. Different engineering design requirements, working environments, and stress requirements necessitate the selection of appropriate pipe wall thicknesses to ensure project safety and stability.

However, faced with the dazzling array of carbon steel pipe types and specifications on the market, many engineering designers often experience confusion when selecting pipe dimensions. How can one select the appropriate carbon steel pipe wall thickness to reduce costs and improve construction efficiency while ensuring pipe strength and service life? Today, we'll delve into the details of steel pipe wall thickness to help you better understand and make informed choices.

Definition of Carbon Steel Pipe Wall Thickness:

As the name suggests, carbon steel pipe wall thickness refers to the thickness of the steel pipe wall. Generally, the wall thickness of carbon steel pipes significantly impacts their pressure resistance, corrosion resistance, bending resistance, and high-temperature resistance. It's not only closely related to the pipe's strength and load-bearing capacity but also has a decisive influence on its actual service life.

The unit for carbon steel pipe wall thickness is usually millimeters (mm), with common wall thicknesses ranging from a few millimeters to tens of millimeters. Generally, a larger wall thickness results in stronger pressure resistance and resistance to external deformation, but it also increases costs. Therefore, selecting the appropriate wall thickness during engineering design is a complex decision-making process that requires comprehensive consideration of various factors.

Factors Influencing Carbon Steel Pipe Wall Thickness:

The selection of carbon steel pipe wall thickness is typically influenced by multiple factors. Different usage environments, functional requirements, and mechanical performance requirements all significantly affect the design of the steel pipe wall thickness.

1. Pressure Resistance Requirements
One of the most important applications of carbon steel pipes is as a pressure-bearing medium, especially in industries such as oil, natural gas, and power, where the pipes often need to withstand very high internal and external pressures. To ensure that the pipeline does not rupture under prolonged high pressure, the pipe wall thickness must be sufficiently strong and tough.

Depending on the specific requirements of the project, the pressure resistance is directly related to the pipe wall thickness. Under certain conditions, the higher the pressure inside the pipeline, the greater the required wall thickness. For example, the design of natural gas pipelines often requires a large pipe wall thickness to prevent pipeline rupture under high-pressure gas flow.

2. Corrosion Resistance
Carbon steel pipes are often exposed to various chemically corrosive environments, especially in industries such as chemical, petrochemical, and marine engineering, where the pipes need to resist the erosion of various acids, alkalis, salts, and other corrosive substances. In such cases, thicker pipes often provide better resistance to corrosion.

Furthermore, in marine environments, the pipes not only need to withstand seawater corrosion but also the oxidation reactions of the marine environment. Therefore, in addition to considering load-bearing capacity, the wall thickness of the steel pipe must also consider its corrosion resistance.

3. Structural Strength Requirements
In projects involving high-intensity mechanical pressure, carbon steel pipes must withstand not only internal and external pressure but also external impacts and loads. For example, steel pipes used in building structures require high strength and impact resistance, thus necessitating a certain wall thickness. Thicker pipe walls enhance bending and compressive strength.

4. High-Temperature Resistance
In projects operating in high-temperature environments, carbon steel pipes require high heat resistance, such as oil pipelines and high-temperature steam pipelines. In these cases, the selection of pipe wall thickness must fully consider the pipe's strength performance at high temperatures. Generally, thicker pipe walls result in stronger high-temperature resistance.

5. Ease of Transportation and Installation
While thicker carbon steel pipe walls can improve performance, excessively thick walls often increase construction costs and difficulty. In actual construction, thicker pipes are not only heavier but also more difficult to cut, weld, and transport. Therefore, a balance must be struck between pipe strength and ease of installation when selecting pipe wall thickness.

Common Carbon Steel Pipe Wall Thickness Designs:

Depending on different project requirements, common carbon steel pipe wall thickness designs generally fall into the following categories:

1. Thin-walled Steel Pipes: Thin-walled carbon steel pipes typically have a wall thickness of less than 10mm and are often used in applications with lower pressure or lighter loads. For example, in some building steel structures, thin-walled steel pipes are often used for supporting steel pipes or lightweight pipelines on the ground.

The advantages of thin-walled steel pipes are their light weight, ease of processing and transportation, and suitability for low-pressure or structurally unrestricted applications.

2. Medium-walled Steel Pipes: Medium-walled carbon steel pipes typically have a wall thickness between 10mm and 20mm and are suitable for projects with higher pressures. Examples include power pipelines and liquid transport pipelines. These pipes offer good pressure resistance and corrosion resistance, making them suitable for most industrial piping systems.

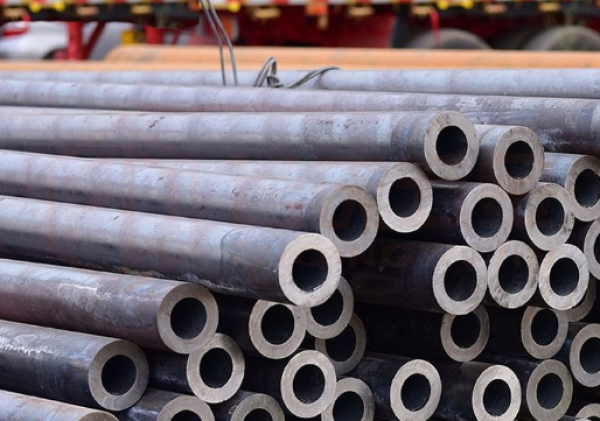

3. Thick-walled Steel Pipes: Thick-walled carbon steel pipes typically have a wall thickness greater than 20mm and are suitable for projects requiring high pressure and heavy loads. Examples include oil and natural gas transport pipelines and high-pressure steam pipelines. Thick-walled steel pipes possess higher compressive and bending resistance, enabling stable operation under harsh environmental conditions.

The disadvantages of thick-walled carbon steel pipes include their greater weight and the need for more sophisticated transportation and welding techniques during construction. However, their pressure-bearing capacity and durability are outstanding.

Selection and Calculation of Steel Pipe Wall Thickness:

The selection of the wall thickness for carbon steel pipes requires consideration of multiple factors, not just solely based on pressure-bearing capacity. Designers need to comprehensively calculate and select an appropriate wall thickness based on factors such as the specific working environment, pipeline function, working pressure, and construction conditions.

Common methods for calculating carbon steel pipe wall thickness include:

1. Calculating Wall Thickness Based on Working Pressure

For steel pipes that need to withstand internal and external pressure, the wall thickness calculation formula is typically based on the pipeline's working pressure, outer diameter, and material strength. The commonly used calculation formula is:

t = (P×D)/(2(S×E + P×E))

Where t is the wall thickness of the steel pipe, P is the working pressure inside the pipe, D is the outer diameter of the steel pipe, S is the allowable tensile strength of the steel pipe material, and E is the safety factor of the pipe.

2. Calculating Wall Thickness Based on Stress Analysis

In some projects that need to withstand external impacts, bending, and other mechanical forces, the wall thickness of carbon steel pipes needs to be calculated based on the maximum stress the pipe will experience. This calculation method is usually based on the maximum load-bearing capacity of the pipe and the yield strength of the material.

Conclusion:

The design of the wall thickness of carbon steel pipes directly affects their application effect in engineering projects. A reasonable wall thickness selection can not only ensure the strength, corrosion resistance, and pressure resistance of the steel pipe, but also optimize project costs and improve construction efficiency. In practical applications, designers need to comprehensively select the appropriate steel pipe wall thickness based on different engineering requirements, combined with the working environment, load requirements, and other technical indicators of the carbon steel pipe.
