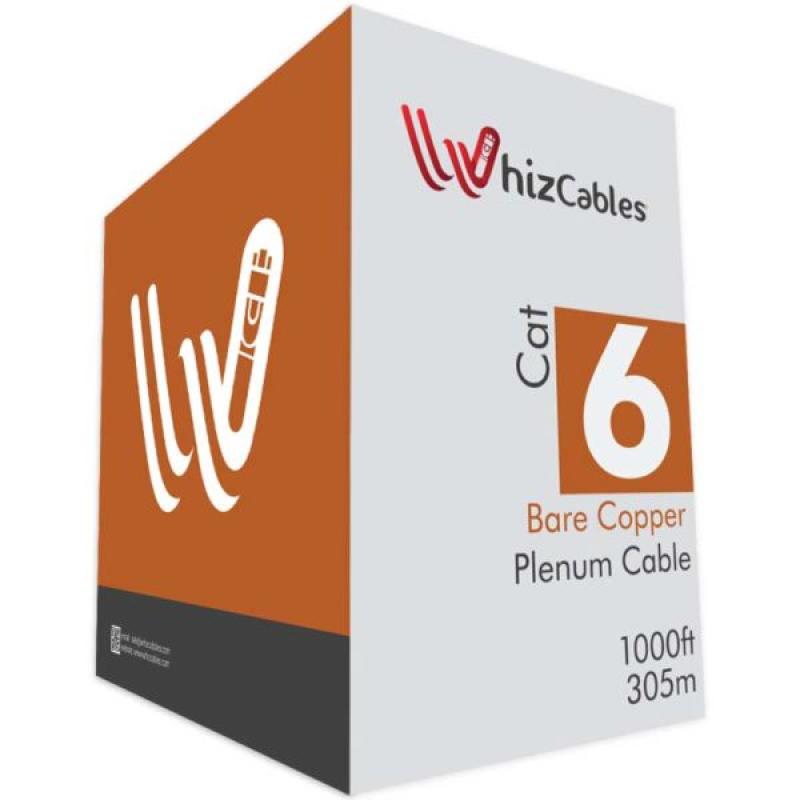

Difference between Cat6 Plenum Solid Conductor and Stranded Conductor

The use of Cat6 Plenum 1000ft cable with stranded or solid conductor wires is highly dependent on the nature of the network you are going to design. Its needs and demands will specify which the best cable is for it. The physical distinctions between the two wires are obvious:

“A solid wire has a solid metal core, whereas stranded wires are made up of several smaller wires twisted together to form an orderly bundle”.

There are several things to consider, as well as benefits and downsides when deciding which wire to use, but the following are the most important:

• The intensity of load and application
• The thickness of the conductor wire
• Type of material used in the manufacturing of conductor wires
• Price

Network engineers employ both stranded and solid wires in a range of applications. Stranded wire vs. solid wire has benefits and drawbacks that lead to one being chosen over the other for each application.

Stranded Wire: -

Stranded wires are more flexible, complex, and delicate because they are bundled. They're better for interior applications like circuit boards, speaker cables, and electronic gadgets, where bending and twisting are required to connect electrical components. An automobile door, for example, is a perfect use for stranded wire since it will be bent frequently.

Benefits of Stranded Wire: -

Stranded cable's wrapped braids have a few distinct advantages over a solid wire, they are:

• Bendable
• Soft
• Will not split or sever

Utilization of Stranded Wire: -

Stranded wires are better suited to interior applications that need bending and twisting to link electrical components such as circuit boards, speaker cables, and electromechanical assembly.

Solid Wire: -

Solid wire is heavier, designed to survive all types of weather, is anti-corrosive, tough, and can sustain frequent but little movement. Carrying electricity through a building structure is a practical use for solid wire since it demands a high current, low movement, and long-term endurance.

Benefits of Solid Wire: -

• Weather-resistant
• Anti-corrosive
• Low cost

Utilization of Solid Wire: -

Solid wires are better suited to outdoor or heavy-duty applications that demand larger currents and more solid durability.

• Building infrastructures
• Vehicle controls
• Outdoor applications

Which is the Best Option?

Cat6 Solid Copper cable has benefits in terms of cost, simplicity, and endurance. It is simple to create and extremely resistant to damage as a single strand of thick wire. The wire's thickness also aids in the prevention of electronic interference and the reduction of the skin effect induced by magnetic fields on the wire's surface.

Its flaw is that it lacks malleability and strength. A thick copper wire is subjected to splitting or severing after it has been twisted. Stranded wires are ideal for applications that demand a lot of bending, reshaping, and movements, such as vehicles and robots, or electrical circuit boards.

All needs must be assessed and addressed when deciding between the stranded and solid wire. The project's environmental conditions use, weights, motion, and durability should be considered against the initial cost vs. long-term costs.

These criteria must be examined before making final judgments regarding what sort of wire should be used to properly and efficiently complete your project, whether you are building a house or a commercial network. In this respect, whether you're a home user or a small business owner, consult a certified electrician or electronic specialist in the wire you've chosen for your project requirements.
